20Φ

FRX Series - Radial Leaded PTC

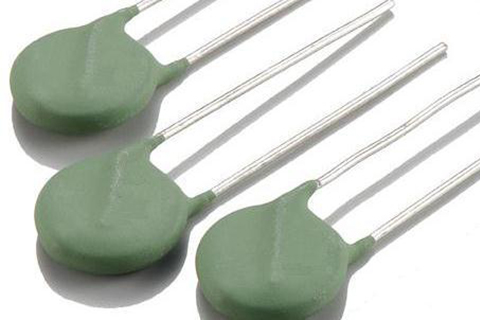

The high surge current JVT S series are specific designed for high transient surge suppression. They are radial lead varistors (MOVs or VDRs) used continuously across AC line primary or DC circuit. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum
Continuous
Operation
Voltage
(MCOV)		 Varistor
Voltage
(V)
(@1mA)		 Maximum Clamping Voltage Withstanding Surge Current(8/20us)
(V ac) (V dc) (V) Tolerance V@ ic    (V) ic (A) 1 Time          (A)
JVT20S220L 14 18 22 ±15% 43 20 3000
JVT20S270K 17 22 27 ±10% 53 20 3000
JVT20S330K 20 26 33 ±10% 65 20 3000
JVT20S390K 25 31 39 ±10% 77 20 3000
JVT20S470K 30 38 47 ±10% 93 20 3000
JVT20S560K 35 45 56 ±10% 110 20 3000
JVT20S680K 40 56 68 ±10% 135 20 3000
JVT20S820K 50 65 82 ±10% 135 100 10000
JVT20S101K 60 85 100 ±10% 165 100 10000
JVT20S121K 75 100 120 ±10% 200 100 10000
JVT20S151K 95 125 150 ±10% 250 100 10000
JVT20S181K 115 150 180 ±10% 300 100 10000
JVT20S201K 130 170 200 ±10% 340 100 10000
JVT20S221K 140 180 220 ±10% 360 100 10000
JVT20S241K 150 200 240 ±10% 395 100 10000
JVT20S271K 175 225 270 ±10% 455 100 10000
JVT20S301K 195 250 300 ±10% 505 100 10000
JVT20S331K 210 275 330 ±10% 550 100 10000
JVT20S361K 230 300 360 ±10% 595 100 10000
JVT20S391K 250 320 390 ±10% 650 100 10000
JVT20S431K 275 350 430 ±10% 710 100 10000
JVT20S471K 300 385 470 ±10% 775 100 10000
JVT20S511K 320 418 510 ±10% 842 100 10000
JVT20S561K 350 460 560 ±10% 920 100 10000
JVT20S621K 385 505 620 ±10% 1025 100 10000
JVT20S681K 420 560 680 ±10% 1120 100 10000
JVT20S751K 460 615 750 ±10% 1240 100 10000
JVT20S781K 485 640 780 ±10% 1290 100 10000
JVT20S821K 510 670 820 ±10% 1355 100 10000
JVT20S911K 550 745 910 ±10% 1500 100 10000
JVT20S102K 625 825 1000 ±10% 1650 100 10000
JVT20S112K 680 895 1100 ±10% 1815 100 10000
JVT20S122K 720 975 1200 ±10% 1980 100 10000
JVT20S142K 825 1135 1400 ±10% 2310 100 10000
JVT20S162K 920 1300 1600 ±10% 2640 100 10000
JVT20S182K 1000 1465 1800 ±10% 2970 100 10000
