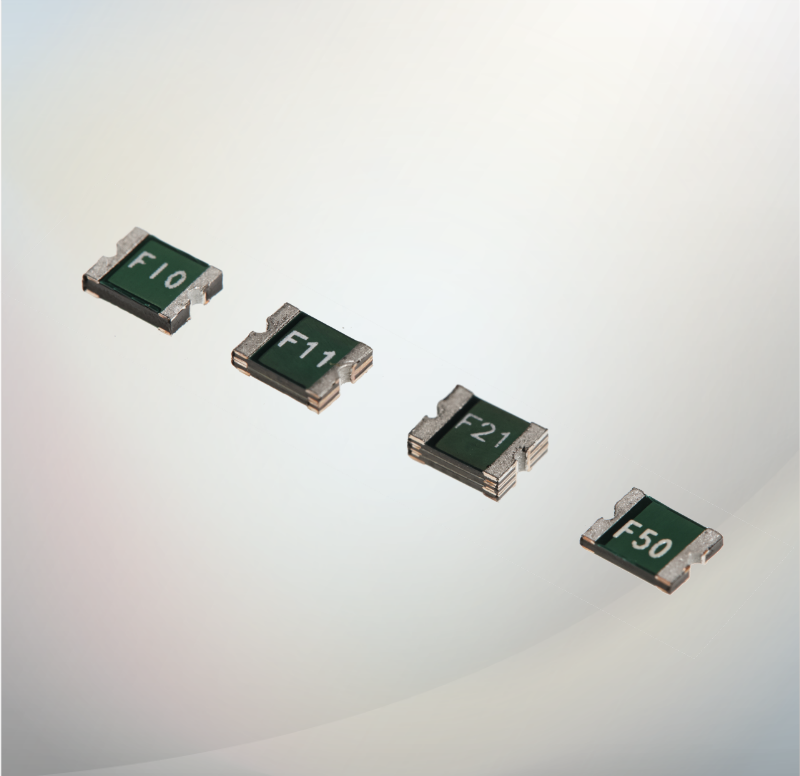

FSMD1210 Series
Application
All high-density boards
Feature
Small surface mount, Solid state Faster time to trip than standard SMD devices Lower resistance than standard SMD devices
Operation Current
0.05A~2.00A
Maximum Voltage
6V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50090556 |
Electrical Characteristics
|
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FSMD005-1210-R |
0.05
|
0.15
|
60
|
100
|
0.60
|
0.25
|
1.50
|
3.600
|
50.000
|
| FSMD010-1210-R |
0.10
|
0.25
|
60
|
100
|
0.60
|
0.50
|
1.50
|
1.600
|
15.000
|
| FSMD020-1210-R |
0.20
|
0.40
|
30
|
100
|
0.60
|
8.00
|
0.02
|
0.800
|
5.000
|
| FSMD035-1210-R |
0.35
|
0.70
|
16
|
100
|
0.60
|
8.00
|
0.20
|
0.320
|
1.300
|
| FSMD050-1210-R |
0.50
|
1.00
|
16
|
100
|
0.60
|
8.00
|
0.10
|
0.250
|
0.900
|
| FSMD075-1210-R |
0.75
|
1.50
|
8
|
100
|
0.60
|
8.00
|
0.10
|
0.130
|
0.400
|
| FSMD075-24-1210R |
0.75
|
1.50
|
24
|
100
|
0.60
|
8.00
|
0.10
|
0.130
|
0.400
|
| FSMD110-1210R |
1.10
|
2.20
|
8
|
100
|
0.80
|
8.00
|
0.30
|
0.060
|
0.210
|
| FSMD110-16-1210R |
1.10
|
2.20
|
16
|
100
|
0.80
|
8.00
|
0.30
|
0.060
|
0.210
|
| FSMD150-1210R |
1.50
|
3.00
|
6
|
100
|
0.80
|
8.00
|
0.50
|
0.040
|
0.110
|
| FSMD175-1210R |
1.75
|
4.00
|
6
|
100
|
0.80
|
8.00
|
0.60
|
0.020
|
0.080
|
| FSMD200-1210R |
2.00
|
4.00
|
6
|
100
|
0.80
|
8.00
|
1.00
|
0.015
|
0.070
|
Thermal Derating
|
Thermal Derating
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
145%
|
130%
|
115%
|
100%
|
92%
|
83%
|
76%
|
70%
|
62%
|
50%
|
Product Dimension
|
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
| FSMD005-1210-R |
3.00
|
3.43
|
2.35
|
2.80
|
0.60
|
1.15
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD010-1210-R |
3.00
|
3.43
|
2.35
|
2.80
|
0.60
|
1.15
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD020-1210-R |
3.00
|
3.43
|
2.35
|
2.80
|
0.40
|
0.85
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD035-1210-R |
3.00
|
3.43
|
2.35
|
2.80
|
0.40
|
0.80
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD050-1210-R |
3.00
|
3.43
|
2.35
|
2.80
|
0.30
|
0.75
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD075-1210-R |
3.00
|
3.43
|
2.35
|
2.80
|
0.30
|
0.70
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD075-24-1210R |
3.00
|
3.43
|
2.35
|
2.80
|
0.80
|
1.20
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD110-1210R |
3.00
|
3.43
|
2.35
|
2.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD110-16-1210R |
3.00
|
3.43
|
2.35
|
2.80
|
0.60
|
1.00
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD150-1210R |
3.00
|
3.43
|
2.35
|
2.80
|
0.50
|
0.90
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD175-1210R |
3.00
|
3.43
|
2.35
|
2.80
|
0.80
|
1.40
|
0.25
|
0.75
|
0.10
|
0.45
|
| FSMD200-1210R |
3.00
|
3.43
|
2.35
|
2.80
|
0.80
|
1.40
|
0.25
|
0.75
|
0.10
|
0.45
|
