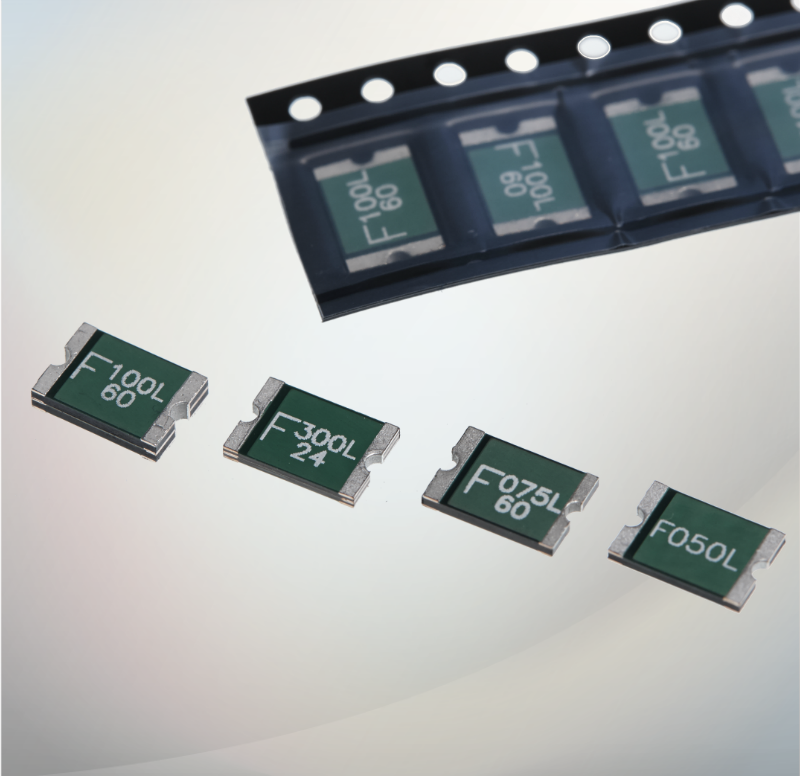

FSMD2920 Series
Application
All high-density boards
Feature
2920 Dimension, Surface mountable, Solid state, Faster time to trip than standard SMD devices
Operation Current
0.3A~3.0A
Maximum Voltage
6V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50090556 |
Electrical Characteristics
|
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FSMD030-2920-R |
0.30
|
0.60
|
60
|
100
|
1.5
|
1.5
|
3.0
|
1.000
|
4.800
|
| FSMD050-2920-R |
0.50
|
1.00
|
60
|
100
|
1.5
|
2.5
|
4.0
|
0.300
|
1.400
|
| FSMD075-2920-R |
0.75
|
1.50
|
33
|
100
|
1.5
|
8.0
|
0.3
|
0.180
|
1.000
|
| FSMD075-60-2920-R |
0.75
|
1.50
|
60
|
100
|
1.5
|
8.0
|
0.3
|
0.180
|
1.000
|
| FSMD100-2920-R |
1.10
|
2.20
|
33
|
100
|
1.5
|
8.0
|
0.5
|
0.090
|
0.410
|
| FSMD100-60-2920R |
1.10
|
2.00
|
60
|
100
|
1.5
|
8.0
|
0.5
|
0.090
|
0.410
|
| FSMD125-2920-R |
1.25
|
2.50
|
33
|
100
|
1.5
|
8.0
|
2.0
|
0.050
|
0.250
|
| FSMD150-2920-R |
1.50
|
3.00
|
33
|
100
|
1.5
|
8.0
|
2.0
|
0.050
|
0.230
|
| FSMD185-2920-R |
1.85
|
3.70
|
33
|
100
|
1.5
|
8.0
|
2.5
|
0.040
|
0.150
|
| FSMD200-2920-R |
2.00
|
4.00
|
16
|
100
|
1.5
|
8.0
|
4.5
|
0.035
|
0.120
|
| FSMD200-24-2920-R |
2.00
|
4.00
|
24
|
100
|
1.5
|
8.0
|
5.0
|
0.035
|
0.120
|
| FSMD250-2920-R |
2.50
|
5.00
|
16
|
100
|
1.5
|
8.0
|
16.0
|
0.025
|
0.085
|
| FSMD260-2920-R |
2.60
|
5.20
|
6
|
100
|
1.5
|
8.0
|
20.0
|
0.020
|
0.075
|
| FSMD260-24-2920R |
2.60
|
5.20
|
24
|
100
|
1.5
|
8.0
|
20.0
|
0.020
|
0.075
|
| FSMD300-2920-R |
3.00
|
5.20
|
6
|
100
|
1.5
|
8.0
|
25.0
|
0.010
|
0.048
|
| FSMD300-15-2920R |
3.00
|
5.20
|
15
|
100
|
1.5
|
8.0
|
20.0
|
0.010
|
0.048
|
| FSMD300-24-2920R |
3.00
|
5.20
|
24
|
100
|
1.5
|
8.0
|
20.0
|
0.010
|
0.048
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
158%
|
138%
|
119%
|
100%
|
90%
|
81%
|
72%
|
60%
|
50%
|
36%
|
Product Dimension
|
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
| FSMD030-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.60
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD050-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.60
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD075-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD075-60-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.60
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD100-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
1.00
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD100-60-2920R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
1.70
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD125-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD150-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD185-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.30
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD200-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.30
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD200-24-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.20
|
0.80
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD250-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.30
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD260-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.30
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD260-24-2920R |
6.73
|
7.98
|
4.80
|
5.44
|
0.65
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD300-2920-R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
0.90
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD300-15-2920R |
6.73
|
7.98
|
4.80
|
5.44
|
0.40
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
| FSMD300-24-2920R |
6.73
|
7.98
|
4.80
|
5.44
|
0.65
|
1.15
|
0.50
|
1.20
|
0.50
|
0.90
|
