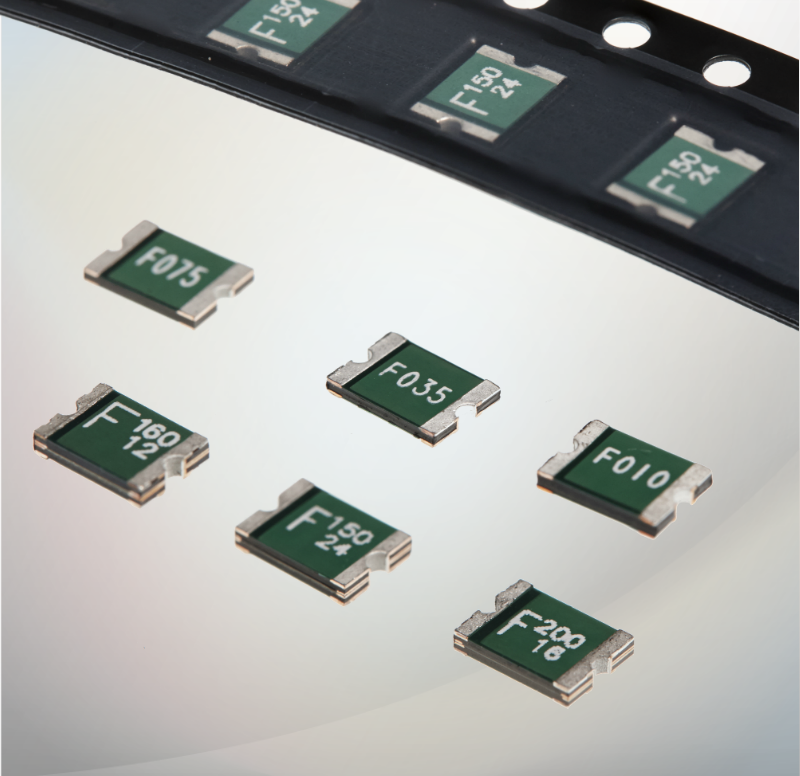

FSMD1812 Series
Application
All high-density boards
Feature
Small surface mount, Solid state Faster time to trip than standard SMD devices Lower resistance than standard SMD devices
Operation Current
0.1A~3.0A
Maximum Voltage
6V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50004084/ R500090556 |
Electrical Characteristics
|
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FSMD010-R |
0.10
|
0.30
|
60
|
100
|
0.8
|
8.0
|
0.020
|
1.600
|
15.000
|
| FSMD014-R |
0.14
|
0.30
|
60
|
100
|
0.8
|
8.0
|
0.008
|
1.200
|
6.500
|
| FSMD020-R |
0.20
|
0.40
|
30
|
100
|
0.8
|
8.0
|
0.020
|
0.800
|
5.000
|
| FSMD020-60-R |
0.20
|
0.40
|
60
|
100
|
0.8
|
8.0
|
0.020
|
0.800
|
5.000
|
| FSMD030-R |
0.30
|
0.60
|
30
|
100
|
0.8
|
8.0
|
0.100
|
0.200
|
1.750
|
| FSMD035-R |
0.35
|
0.70
|
16
|
100
|
0.8
|
8.0
|
0.100
|
0.320
|
1.500
|
| FSMD035-30-R |
0.35
|
0.70
|
30
|
100
|
0.8
|
8.0
|
0.100
|
0.320
|
1.500
|
| FSMD050-R |
0.50
|
1.00
|
16
|
100
|
0.8
|
8.0
|
0.150
|
0.150
|
1.000
|
| FSMD050-30-R |
0.50
|
1.00
|
30
|
100
|
0.8
|
8.0
|
0.150
|
0.150
|
1.000
|
| FSMD075-R |
0.75
|
1.50
|
16
|
100
|
0.8
|
8.0
|
0.200
|
0.110
|
0.450
|
| FSMD075-24R |
0.75
|
1.50
|
24
|
100
|
1.0
|
8.0
|
0.200
|
0.110
|
0.290
|
| FSMD075-33R |
0.75
|
1.50
|
33
|
100
|
1.0
|
8.0
|
0.200
|
0.110
|
0.400
|
| FSMD110-R |
1.10
|
2.20
|
8
|
100
|
0.8
|
8.0
|
0.300
|
0.040
|
0.210
|
| FSMD110-16-R |
1.10
|
2.20
|
16
|
100
|
0.8
|
8.0
|
0.500
|
0.060
|
0.180
|
| FSMD110-24R |
1.10
|
2.20
|
24
|
100
|
1.0
|
8.0
|
0.500
|
0.060
|
0.200
|
| FSMD110-33R |
1.10
|
2.20
|
33
|
100
|
0.8
|
8.0
|
0.500
|
0.060
|
0.200
|
| FSMD125-R |
1.25
|
2.50
|
6
|
100
|
0.8
|
8.0
|
0.400
|
0.050
|
0.140
|
| FSMD125-16R |
1.25
|
2.50
|
16
|
100
|
0.8
|
8.0
|
0.400
|
0.050
|
0.140
|
| FSMD150-R |
1.50
|
3.00
|
8
|
100
|
0.8
|
8.0
|
0.500
|
0.040
|
0.110
|
| FSMD150-12R |
1.50
|
3.00
|
12
|
100
|
1.0
|
8.0
|
0.500
|
0.040
|
0.110
|
| FSMD150-24R |
1.50
|
3.00
|
24
|
100
|
1.0
|
8.0
|
1.500
|
0.040
|
0.120
|
| FSMD160-R |
1.60
|
3.20
|
8
|
100
|
0.8
|
8.0
|
0.500
|
0.030
|
0.100
|
| FSMD160-12R |
1.60
|
3.20
|
12
|
100
|
1.0
|
8.0
|
1.000
|
0.030
|
0.100
|
| FSMD160-16R |
1.60
|
3.20
|
16
|
100
|
1.0
|
8.0
|
1.000
|
0.030
|
0.100
|
| FSMD160-24R |
1.60
|
3.20
|
24
|
100
|
1.0
|
8.0
|
1.000
|
0.030
|
0.100
|
| FSMD200R |
2.00
|
3.50
|
8
|
100
|
1.0
|
8.0
|
2.000
|
0.020
|
0.070
|
| FSMD200-16R |
2.00
|
3.50
|
16
|
100
|
1.0
|
8.0
|
5.000
|
0.020
|
0.085
|
| FSMD260R |
2.60
|
5.00
|
8
|
100
|
1.0
|
8.0
|
2.500
|
0.015
|
0.047
|
| FSMD260-13R |
2.60
|
5.00
|
13.2
|
100
|
1.3
|
8.0
|
5.000
|
0.015
|
0.050
|
| FSMD260-16R |
2.60
|
5.00
|
16
|
100
|
1.3
|
8.0
|
5.000
|
0.015
|
0.050
|
| FSMD300R |
3.00
|
5.00
|
6
|
100
|
1.0
|
8.0
|
4.000
|
0.012
|
0.040
|
| FSMD300R |
3.00
|
5.00
|
6
|
100
|
1.0
|
8.0
|
4.000
|
0.012
|
0.040
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
145%
|
130%
|
116%
|
100%
|
91%
|
84%
|
78%
|
69%
|
61%
|
50%
|
Product Dimension
|
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
| FSMD010-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
0.90
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD014-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
0.90
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD020-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
0.90
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD020-60-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
0.90
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD030-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.40
|
0.70
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD035-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.40
|
0.70
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD050-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.35
|
0.65
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD050-30-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.45
|
0.75
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD075-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.35
|
0.65
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD075-24R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.55
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD075-33R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.55
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD110-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.25
|
0.55
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD110-16-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.25
|
0.90
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD110-24R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.30
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD110-33R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.30
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD125-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.25
|
0.55
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD125-16R |
4.37
|
4.73
|
3.07
|
3.41
|
0.50
|
1.00
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD150-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.25
|
0.55
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD150-12R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
1.10
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD150-24R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
1.55
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD160-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.25
|
0.90
|
0.30
|
0.95
|
0.25
|
0.65
|
| FSMD160-12R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
1.35
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD160-16R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
1.35
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD160-24R |
4.37
|
4.73
|
3.07
|
3.41
|
0.55
|
1.20
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD200-R |
4.37
|
4.73
|
3.07
|
3.41
|
0.55
|
1.35
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD200-16R |
4.37
|
4.73
|
3.07
|
3.41
|
0.60
|
1.55
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD260R |
4.37
|
4.73
|
3.07
|
3.41
|
0.55
|
1.20
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD260-13R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.20
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD260-16R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.55
|
0.25
|
0.95
|
0.25
|
0.65
|
| FSMD300R |
4.37
|
4.73
|
3.07
|
3.41
|
0.80
|
1.55
|
0.25
|
0.95
|
0.25
|
0.65
|
