C-ESD Protection Only

FRX Series - Radial Leaded PTC

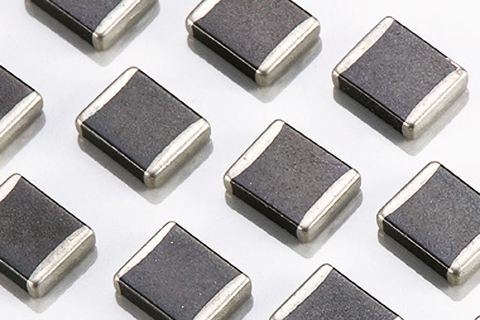

The JMV low cap. C series is a family of transient surge suppressor based on multilayer structure technology. They can suppress variety of transient events, including those specified by IEC or other standard used for Electromagnetic Compliance (EMC). The JMV low cap. C series is typically applied to protect integrated circuits and I/O port high speed signal transient voltage or electrostatic discharge (ESD).
Part No. Working Voltage Vw) Clamping Voltage (Vc) ESD Withstanding Capacitance (C) Capacitance Tolerance
Volts Volts Times pF %
<15μA 1A,8/20μs 8KV * 1KHz 1MHz
0402
JMV0402C050T4R7 5.0 50.0 ＞ 1000 - 4.7 -20% ~ +80%
JMV0402C050T100 5.0 50.0 ＞ 1000 - 10 ±20%
JMV0402C050T120 5.0 50.0 ＞ 1000 - 12 ±20%
JMV0402C050T150 5.0 50.0 ＞ 1000 - 15 ±20%
JMV0402C050T180 5.0 50.0 ＞ 1000 - 18 ±20%
JMV0402C050T220 5.0 50.0 ＞ 1000 - 22 ±20%
JMV0402C050T270 5.0 50.0 ＞ 1000 - 27 ±20%
JMV0402C050T330 5.0 50.0 ＞ 1000 - 33 ±20%
JMV0402C050T390 5.0 50.0 ＞ 1000 - 39 ±20%
JMV0402C050T470 5.0 50.0 ＞ 1000 - 47 ±20%
JMV0402C050T560 5.0 50.0 ＞ 1000 - 56 ±20%
JMV0402C050T680 5.0 50.0 ＞ 1000 - 68 ±20%
JMV0402C050T820 5.0 50.0 ＞ 1000 - 82 ±20%
JMV0402C050T101 5.0 30.0 ＞ 1000 100 - ±20%
JMV0402C050T121 5.0 30.0 ＞ 1000 120 - ±20%
JMV0402C050T151 5.0 29.0 ＞ 1000 150 - ±20%
JMV0402C050T181 5.0 29.0 ＞ 1000 180 - ±20%
JMV0402C050T221 5.0 27.0 ＞ 1000 220 - ±20%
JMV0402C050T271 5.0 27.0 ＞ 1000 270 - ±20%
JMV0402C050T331 5.0 26.0 ＞ 1000 330 - ±20%
JMV0402C120T4R7 12.0 80.0 ＞ 1000 - 4.7 -20% ~ +80%
JMV0402C120T100 12.0 60.0 ＞ 1000 - 10 ±20%
JMV0402C120T120 12.0 60.0 ＞ 1000 - 12 ±20%
JMV0402C120T220 12.0 50.0 ＞ 1000 - 22 ±20%
JMV0402C120T330 12.0 50.0 ＞ 1000 - 33 ±20%
JMV0402C120T470 12.0 50.0 ＞ 1000 - 47 ±20%
JMV0402C120T560 12.0 50.0 ＞ 1000 - 56 ±20%
JMV0402C120T820 12.0 50.0 ＞ 1000 - 82 ±20%
JMV0402C120T101 12.0 50.0 ＞ 1000 100 - ±20%
JMV0402C240T3R3 24.0 200.0 ＞ 1000 - 3.3 -20% ~ +80%
JMV0402C240T4R7 24.0 130.0 ＞ 1000 - 4.7 -20% ~ +80%
0603
JMV0603C050T4R7 5.0 50.0 ＞ 1000 - 4.7 -20% ~ +80%
JMV0603C050T100 5.0 50.0 ＞ 1000 - 10 ±20%
JMV0603C050T120 5.0 50.0 ＞ 1000 - 12 ±20%
JMV0603C050T150 5.0 50.0 ＞ 1000 - 15 ±20%
JMV0603C050T180 5.0 50.0 ＞ 1000 - 18 ±20%
JMV0603C050T220 5.0 50.0 ＞ 1000 - 22 ±20%
JMV0603C050T270 5.0 50.0 ＞ 1000 - 27 ±20%
JMV0603C050T330 5.0 50.0 ＞ 1000 - 33 ±20%
JMV0603C050T390 5.0 50.0 ＞ 1000 - 39 ±20%
JMV0603C050T470 5.0 50.0 ＞ 1000 - 47 ±20%
JMV0603C050T560 5.0 50.0 ＞ 1000 - 56 ±20%
JMV0603C050T680 5.0 50.0 ＞ 1000 - 68 ±20%
JMV0603C050T820 5.0 50.0 ＞ 1000 - 82 ±20%
JMV0603C050T101 5.0 30.0 ＞ 1000 100 - ±20%
JMV0603C050T151 5.0 29.0 ＞ 1000 150 - ±20%
JMV0603C050T181 5.0 29.0 ＞ 1000 180 - ±20%
JMV0603C050T221 5.0 27.0 ＞ 1000 220 - ±20%
JMV0603C050T271 5.0 27.0 ＞ 1000 270 - ±20%
JMV0603C050T331 5.0 26.0 ＞ 1000 330 - ±20%
JMV0603C050T391 5.0 26.0 ＞ 1000 390 - ±20%
JMV0603C050T471 5.0 26.0 ＞ 1000 470 - ±20%
JMV0603C050T102 5.0 23.0 ＞ 1000 1000 - ±20%
JMV0603C120T4R7 12.0 80.0 ＞ 1000 - 4.7 -20% ~ +80%
JMV0603C120T100 12.0 60.0 ＞ 1000 - 10 ±20%
JMV0603C120T150 12.0 50.0 ＞ 1000 - 15 ±20%
JMV0603C120T220 12.0 50.0 ＞ 1000 - 22 ±20%
JMV0603C120T330 12.0 50.0 ＞ 1000 - 33 ±20%
JMV0603C120T390 12.0 50.0 ＞ 1000 - 39 ±20%
JMV0603C120T470 12.0 50.0 ＞ 1000 - 47 ±20%
JMV0603C120T560 12.0 50.0 ＞ 1000 - 56 ±20%
JMV0603C120T820 12.0 50.0 ＞ 1000 - 82 ±20%
JMV0603C120T101 12.0 50.0 ＞ 1000 100 - ±20%
JMV0603C120T151 12.0 50.0 ＞ 1000 150 - ±20%
JMV0603C120T181 12.0 47.0 ＞ 1000 180 - ±20%
JMV0603C120T331 12.0 46.0 ＞ 1000 330 - ±20%
JMV0603C240T3R3 24.0 200.0 ＞ 1000 - 3.3 -20% ~ +80%
