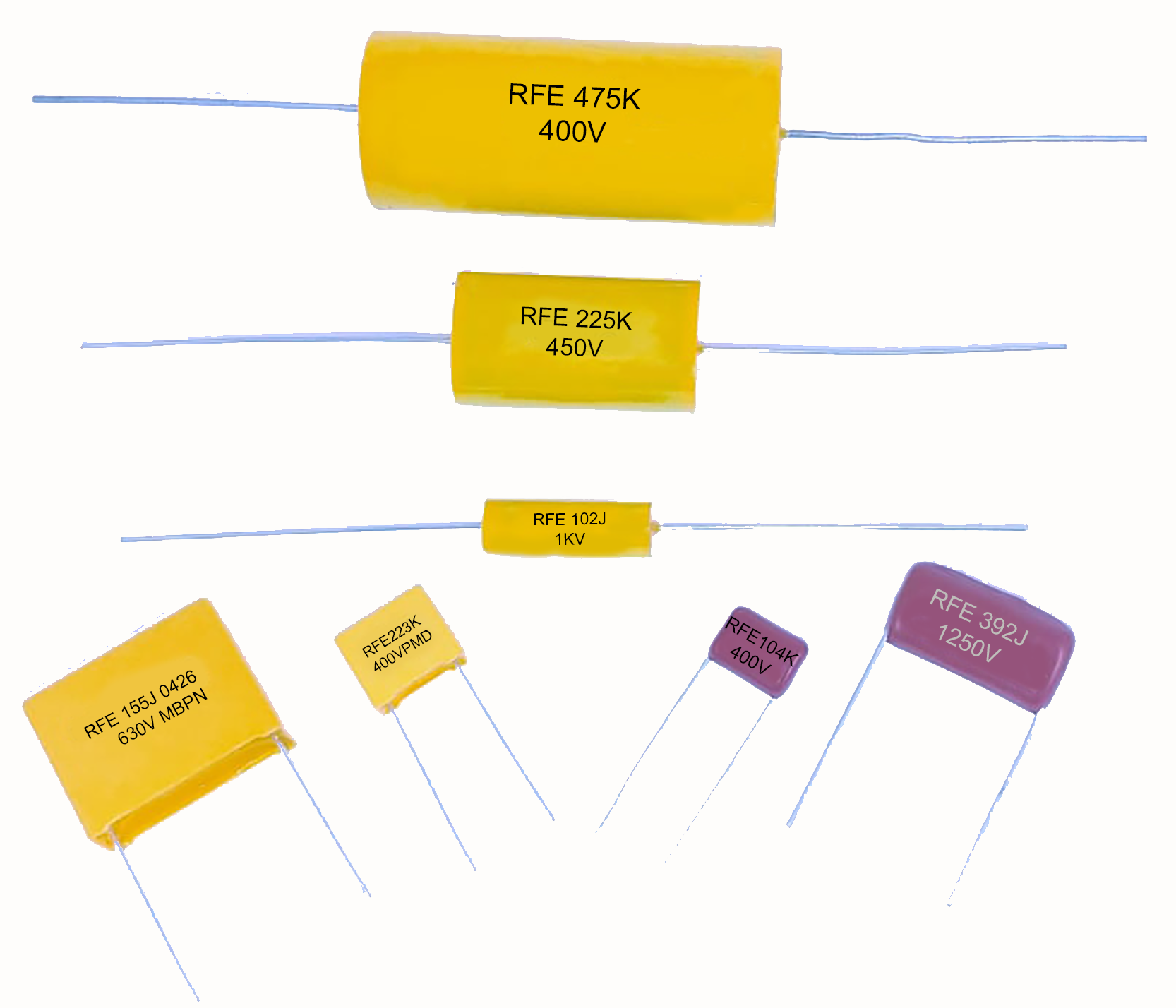

Prolypropylene Metalized Film Capacitors



Find Parts

Series

Feature

Capacitance

Voltage(V)

Download
MPP - Epoxy Smaller size, Standard Rating -40°C ~ +105°C (Vr derated 1.25% per °C over 85°C) 0.01μF ~ 10μF 100Vdc ~ 630Vdc
PMD - Epoxy, Standard Radial -40°C ~ +85°C 0.001μF ~ 3.3μF 100Vdc ~ 630Vdc
MPPS - Epoxy, High Voltage -40°C ~ +85°C 0.001μF ~ 1μF 1000Vdc~ 2000Vdc
MPPN - Epoxy, Power Factory Correction -40°C ~ +110°C (Vr derated 1.25% per °C over 85°C) 0.022μF ~ 2.2μF 450Vdc, 630Vdc
MBPN - Box, Power Factor Correction -40°C ~ +105°C (Vr derated 1.25% per °C over 85°C) 0.022μF ~ 8.2μF 450Vdc, 520Vdc, 630Vdc
MMPB - Box, High Frequency & Pulse -40°C ~ +105°C (Vr derated 1.25% per °C over 85°C) 0.00022μF ~ 3.9μF 250Vdc ~ 2,000Vdc
MPPB - Box, Low Loss at High Frequency -55°C ~ +105°C (Vr derated 1.25% per °C over 85°C) 0.00056μF ~ 15μF 160Vdc ~ 2,000Vdc (90Vac ~ 700Vac)
PMT & PMF - Axial, Tubular or Flat -55°C ~ +105°C (Vr derated 1.25% per °C over 85°C) 0.01μF ~ 4.7μF 250Vdc ~ 630Vdc
