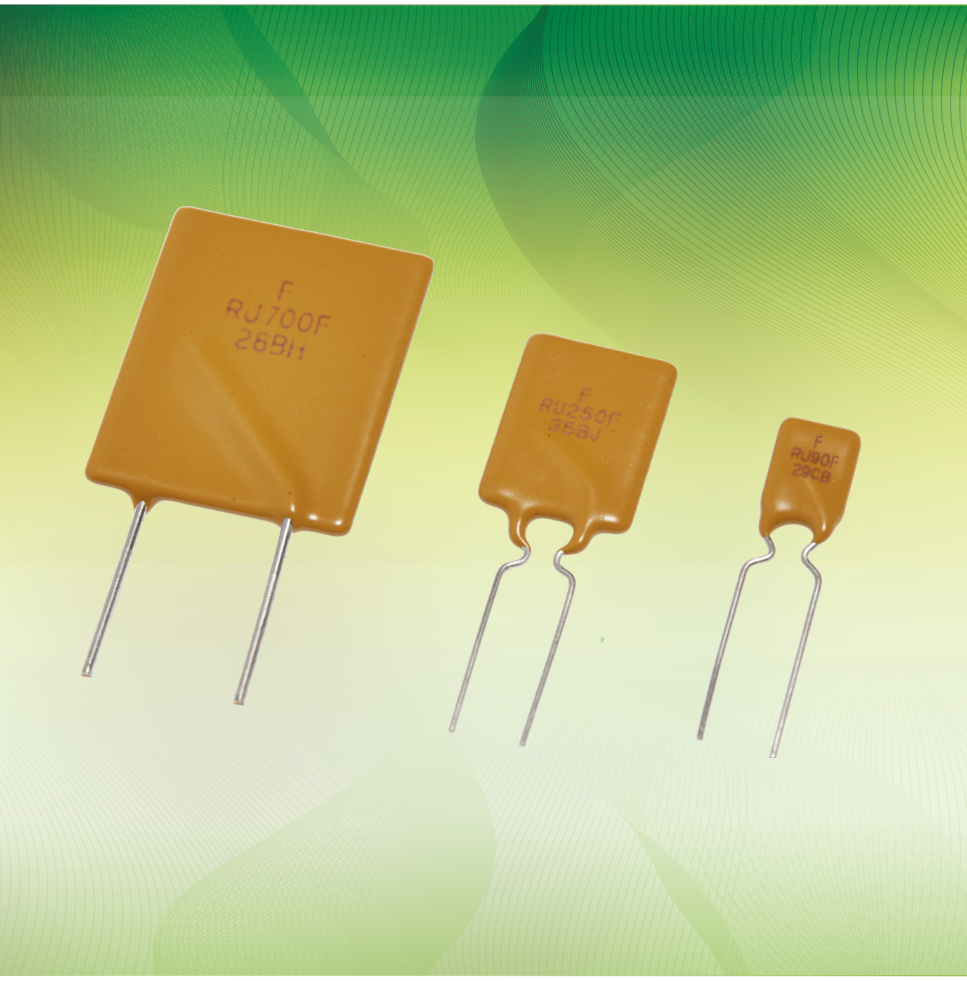

FRU Series - Radial Leaded PPTC
Application
Wide variety of electronic equipment
Feature
Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30VDC
Operation Current
0.9A~9.0A
Maximum Voltage
30 VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50004084 |
Electrical Characteristics (23°C)
|
Part
Number
|
Hold
Current |
Trip
Current |
Max.
Time to Trip
|
Max
Current |
Rated
Voltage |
Typ.
Power
|
Resistance
|
|
|
IH, A
|
IT, A
|
@ 5 x IH, s
|
IMAX, A
|
V Max, V DC
|
V Max, V DC
|
Rmin
|
R1max
|
|
| FRU090-30F |
0.90
|
1.80
|
5.9
|
100
|
30
|
0.6
|
0.070
|
0.220
|
| FRU110-30F |
1.10
|
2.20
|
6.6
|
100
|
30
|
0.7
|
0.050
|
0.170
|
| FRU135-30F |
1.35
|
2.70
|
7.3
|
100
|
30
|
0.8
|
0.040
|
0.130
|
| FRU160-30F |
1.60
|
3.20
|
8.0
|
100
|
30
|
0.9
|
0.030
|
0.110
|
| FRU185-30F |
1.85
|
3.70
|
8.7
|
100
|
30
|
1.0
|
0.030
|
0.090
|
| FRU250-30F |
2.50
|
5.00
|
10.3
|
100
|
30
|
1.2
|
0.020
|
0.070
|
| FRU300-30F |
3.00
|
6.00
|
10.8
|
100
|
30
|
2.0
|
0.020
|
0.080
|
| FRU400-30F |
4.00
|
8.00
|
12.7
|
100
|
30
|
2.5
|
0.010
|
0.050
|
| FRU500-30F |
5.00
|
10.00
|
14.5
|
100
|
30
|
3.0
|
0.010
|
0.050
|
| FRU600-30F |
6.00
|
12.00
|
16.0
|
100
|
30
|
3.5
|
0.005
|
0.040
|
| FRU700-30F |
7.00
|
14.00
|
17.5
|
100
|
30
|
3.8
|
0.005
|
0.030
|
| FRU800-30F |
8.00
|
16.00
|
18.8
|
100
|
30
|
4.0
|
0.005
|
0.020
|
| FRU900-30F |
9.00
|
18.00
|
20.0
|
100
|
30
|
4.2
|
0.005
|
0.020
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
145%
|
130%
|
115%
|
100%
|
92%
|
84%
|
76%
|
70%
|
61%
|
50%
|

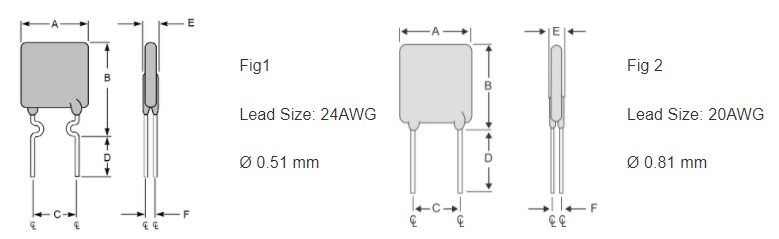

Product Dimension
|
Part Number
|
Fig.
|
A
|
B
|
C
|
D
|
E
|
F
|
|
Max
|
Max
|
Typ
|
Min
|
Max
|
Typ.
|
||
| FRU090-30F |
1
|
7.4
|
12.2
|
5.1
|
7.6
|
3.0
|
0.9
|
| FRU110-30F |
1
|
7.4
|
14.2
|
5.1
|
7.6
|
3.0
|
0.9
|
| FRU135-30F |
1
|
8.9
|
13.5
|
5.1
|
7.6
|
3.0
|
0.9
|
| FRU160-30F |
1
|
8.9
|
15.2
|
5.1
|
7.6
|
3.0
|
0.9
|
| FRU185-30F |
1
|
10.2
|
15.7
|
5.1
|
7.6
|
3.0
|
0.9
|
| FRU250-30F |
1
|
11.4
|
18.3
|
5.1
|
7.6
|
3.0
|
0.9
|
| FRU300-30F |
2
|
11.4
|
17.3
|
5.1
|
7.6
|
3.0
|
1.2
|
| FRU400-30F |
2
|
14.0
|
20.1
|
5.1
|
7.6
|
3.0
|
1.2
|
| FRU500-30F |
2
|
14.0
|
24.9
|
10.2
|
7.6
|
3.0
|
1.2
|
| FRU600-30F |
2
|
16.5
|
24.9
|
10.2
|
7.6
|
3.0
|
1.2
|
| FRU700-30F |
2
|
19.1
|
26.7
|
10.2
|
7.6
|
3.0
|
1.2
|
| FRU800-30F |
2
|
21.6
|
29.2
|
10.2
|
7.6
|
3.0
|
1.2
|
| FRU900-30F |
2
|
24.1
|
29.7
|
10.2
|
7.6
|
3.0
|
1.2
|
