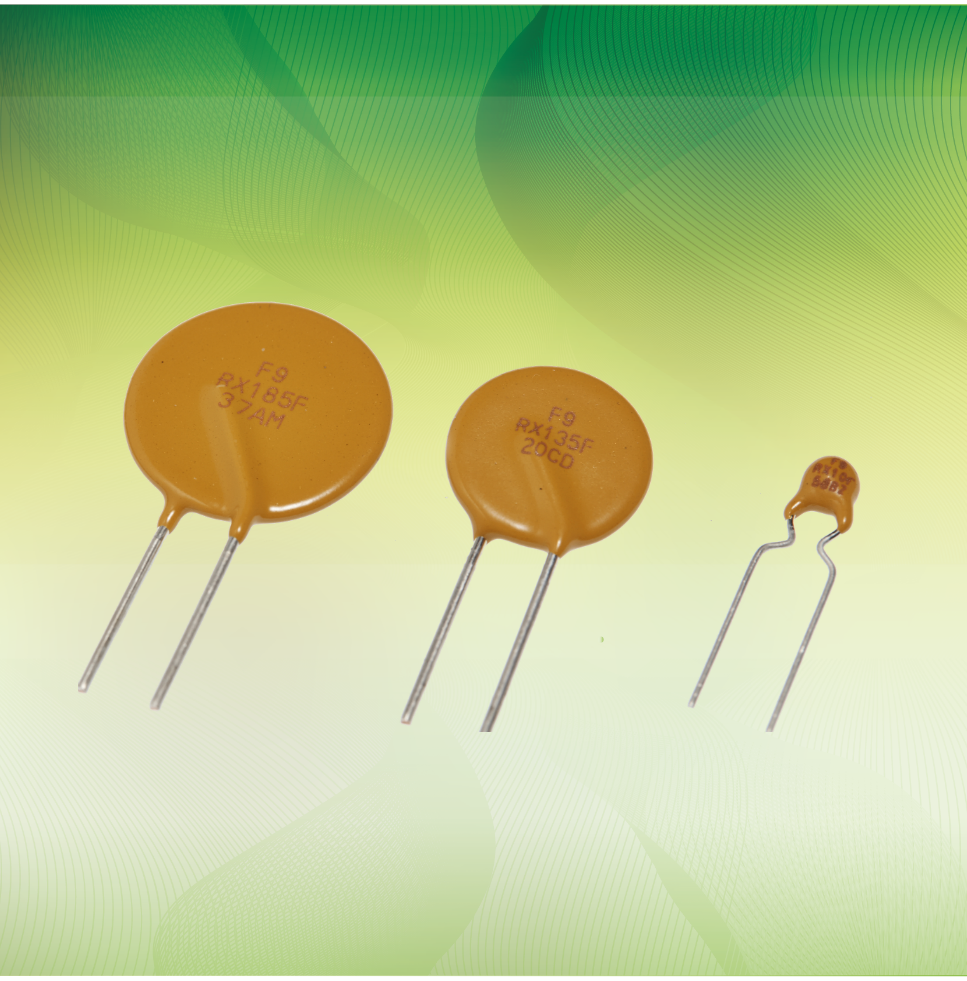

FRX (90V) Series - Radial Leaded PPTC
Application
Telecom & wide Variety of Electronic Equipment
Feature
Low hold current, solid state, radial leaded product ideal for up to 90 Vdc
Operation Current
0.10A~3.75A
Maximum Voltage
Up to 90VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50004084 |
Electrical Characteristics (23°C)
|
Part
Number
|
Hold
Current |
Trip
Current |
Max.
Time to Trip
|
Max
Current |
Rated
Voltage |
Typ.
Power
|
Resistance
|
|
|
IH, A
|
IT, A
|
@ 5 x IH, s
|
IMAX, A
|
VMax, VDC
|
Pd, W
|
RMin
|
R1Max
|
|
| FRX010-90F |
0.10
|
0.20
|
4.0
|
40
|
72/90
|
0.38
|
2.50
|
7.50
|
| FRX015-90F |
0.15
|
0.35
|
10.0
|
40
|
72/90
|
0.70
|
2.40
|
7.00
|
| FRX017-90F |
0.17
|
0.34
|
3.0
|
40
|
72/90
|
0.48
|
2.00
|
8.00
|
| FRX020-90F |
0.20
|
0.40
|
2.2
|
40
|
72/90
|
0.41
|
1.83
|
4.40
|
| FRX025-90F |
0.25
|
0.50
|
2.5
|
40
|
72/90
|
0.45
|
1.25
|
3.00
|
| FRX030-90F |
0.30
|
0.60
|
3.0
|
40
|
72/90
|
0.49
|
0.88
|
2.10
|
| FRX035-90F |
0.35
|
0.75
|
10.0
|
40
|
72/90
|
1.30
|
0.70
|
2.50
|
| FRX040-90F |
0.40
|
0.80
|
3.8
|
40
|
72/90
|
0.56
|
0.55
|
1.29
|
| FRX050-90F |
0.50
|
1.00
|
4.0
|
40
|
72/90
|
0.77
|
0.50
|
1.17
|
| FRX055-90F |
0.55
|
1.20
|
10.0
|
40
|
72/90
|
1.50
|
0.40
|
1.50
|
| FRX065-90F |
0.65
|
1.30
|
5.3
|
40
|
72/90
|
0.88
|
0.31
|
0.72
|
| FRX075-90F |
0.75
|
1.50
|
6.3
|
40
|
72/90
|
0.92
|
0.25
|
0.60
|
| FRX090-90F |
0.90
|
1.80
|
7.2
|
40
|
72/90
|
0.99
|
0.20
|
0.47
|
| FRX110-90F |
1.10
|
2.20
|
8.2
|
40
|
72/90
|
1.50
|
0.15
|
0.38
|
| FRX135-90F |
1.35
|
2.70
|
9.6
|
40
|
72/90
|
1.70
|
0.12
|
0.30
|
| FRX160-90F |
1.60
|
3.20
|
11.4
|
40
|
72/90
|
1.90
|
0.09
|
0.22
|
| FRX185-90F |
1.85
|
3.70
|
12.4
|
40
|
72/90
|
2.10
|
0.08
|
0.19
|
| FRX250-90F |
2.50
|
5.00
|
15.6
|
40
|
72/90
|
2.50
|
0.05
|
0.13
|
| FRX300-90F |
3.00
|
6.00
|
19.8
|
40
|
72/90
|
2.80
|
0.04
|
0.10
|
| FRX375-90F |
3.75
|
7.50
|
24.0
|
40
|
72/90
|
3.20
|
0.03
|
0.08
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
-23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
158%
|
138%
|
119%
|
100%
|
90%
|
81%
|
70%
|
60%
|
50%
|
36%
|
Product Dimension
|
Part Number
|
Fig.
|
A
|
B
|
C
|
D
|
E
|
F
|
|
Max
|
Max
|
Typ.
|
Min
|
Max
|
Typ.
|
||
| FRX010-90F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX015-90F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX017-90F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX020-90F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX025-90F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX030-90F |
1
|
7.4
|
13.0
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX035-90F |
1
|
7.4
|
12.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX040-90F |
1
|
7.6
|
13.5
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX050-90F |
1
|
7.9
|
13.7
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX055-90F |
1
|
9.7
|
14.0
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX065-90F |
1
|
9.7
|
14.5
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX075-90F |
1
|
10.4
|
15.2
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX090-90F |
1
|
11.7
|
15.8
|
5.1
|
7.6
|
3.1
|
1.1
|
| FRX110-90F |
2
|
13.0
|
18.0
|
5.1
|
7.6
|
3.1
|
1.4
|
| FRX135-90F |
2
|
14.5
|
19.6
|
5.1
|
7.6
|
3.1
|
1.4
|
| FRX160-90F |
2
|
16.3
|
21.3
|
5.1
|
7.6
|
3.1
|
1.4
|
| FRX185-90F |
2
|
17.8
|
22.9
|
5.1
|
7.6
|
3.1
|
1.4
|
| FRX250-90F |
2
|
21.3
|
26.4
|
10.2
|
7.6
|
3.1
|
1.4
|
| FRX300-90F |
2
|
24.9
|
30.0
|
10.2
|
7.6
|
3.1
|
1.4
|
| FRX375-90F |
2
|
28.5
|
33.5
|
10.2
|
7.6
|
3.1
|
1.4
|
