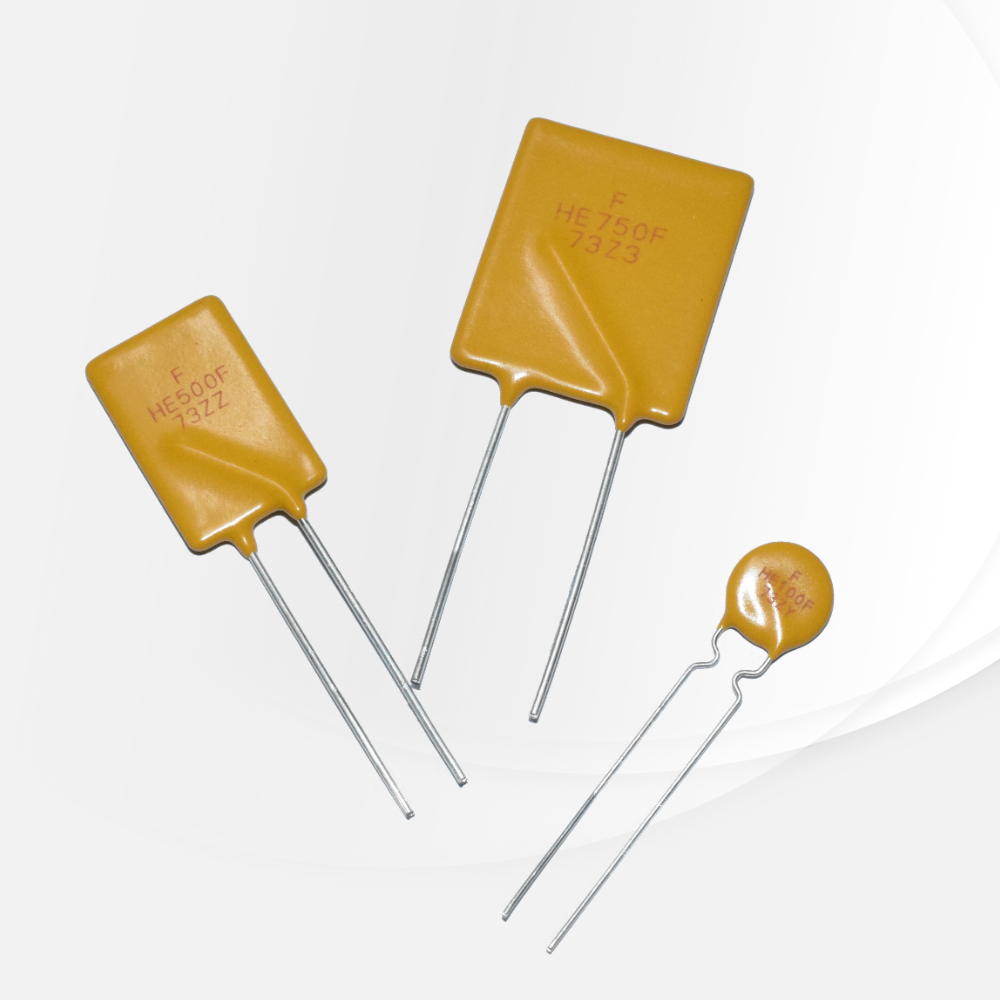

FHE Series - Radial Leaded PPTC

FRX Series - Radial Leaded PTC

Application

Wide variety of electronic equipment

Product Features

Very low resistance, very high hold current, solid state, radial leaded product ideal for up to 32 Vdc and operating temperatures up to 125℃

Operation Current

0.50A~10.00A

Maximum Voltage

32V

Temperature Range

-40℃ to 125℃


Content





Agency Recognition

AGENCY AGENCY FILE NUMBER
E211981
E211981
R50004084

Electrical Characteristics (23°C)


Part
Number
Hold
Current
Trip
Current
Max.
Time to Trip
Max
Current
Rated
Voltage
Typ.
Power
Resistance
IH, A
IT, A
@ 5 x IH, s
MAX, A
Max, V DC
Max, V DC
Rmin
R1max
FHE050-32F
0.5
1.0
3.0
100
32
0.9
0.3500
1.1000
FHE070-32F
0.7
1.4
3.2
100
32
1.4
0.2300
0.8000
FHE100-32F
1.0
1.9
6.2
100
32
1.4
0.1500
0.4300
FHE200-32F
2.0
4.0
5.5
100
32
2.2
0.0650
0.2500
FHE300-32F
3.0
6.0
5.0
100
32
3.2
0.0350
0.1100
FHE500-32F
5.0
10.0
9.0
100
32
5.3
0.0150
0.0400
FHE750-32F
7.5
15.0
13.0
100
32
6.5
0.0074
0.0230
FHE1000-32F
10.0
20.0
15.0
100
32
7.0
0.0060
0.0160




Thermal Derating

Temperature
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
125℃
Derating%
143%
130%
115%
100%
92%
88%
80%
72%
65%
55%
28%

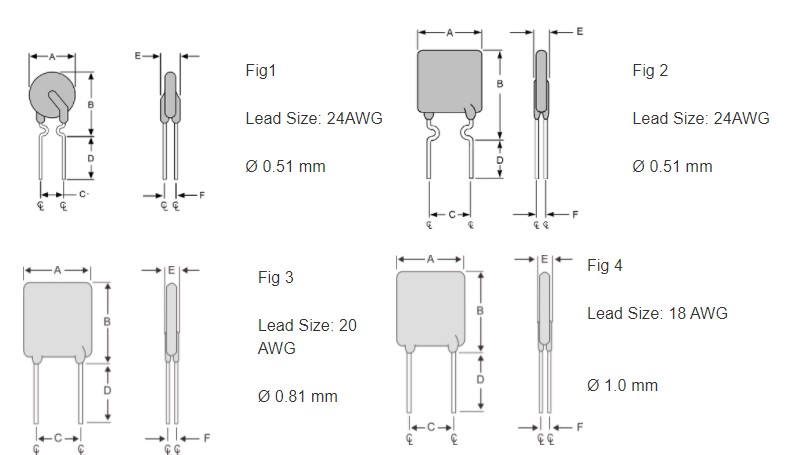

Product Dimension

                                                                                          Product Fig

Fig1

Lead Size: 24AWG

Ø 0.51 mm

Fig 2

Lead Size: 24AWG

Ø 0.51 mm



Fig 3

Lead Size: 20 AWG

Ø 0.81 mm

Fig 4

Lead Size: 18 AWG

Ø 1.0 mm


Part Number
Fig.
A
B
C
D
E
Max
Max
Typ
Min
Max
FHE050-32F
1
7.4
12.7
5.1
7.6
3.3
FHE070-32F
2
6.9
10.8
5.1
7.6
3.0
FHE100-32F
1
9.7
13.6
5.1
7.6
3.0
FHE200-32F
3
9.5
13.5
5.1
7.6
3.0
FHE300-32F
3
10.2
15.5
5.1
7.6
3.8
FHE500-32F
3
14.0
24.1
5.1
7.6
3.8
FHE750-32F
3
21.1
24.9
10.2
7.6
3.8
FHE1000-32F
4
23.5
27.9
10.2
7.6
4.0
