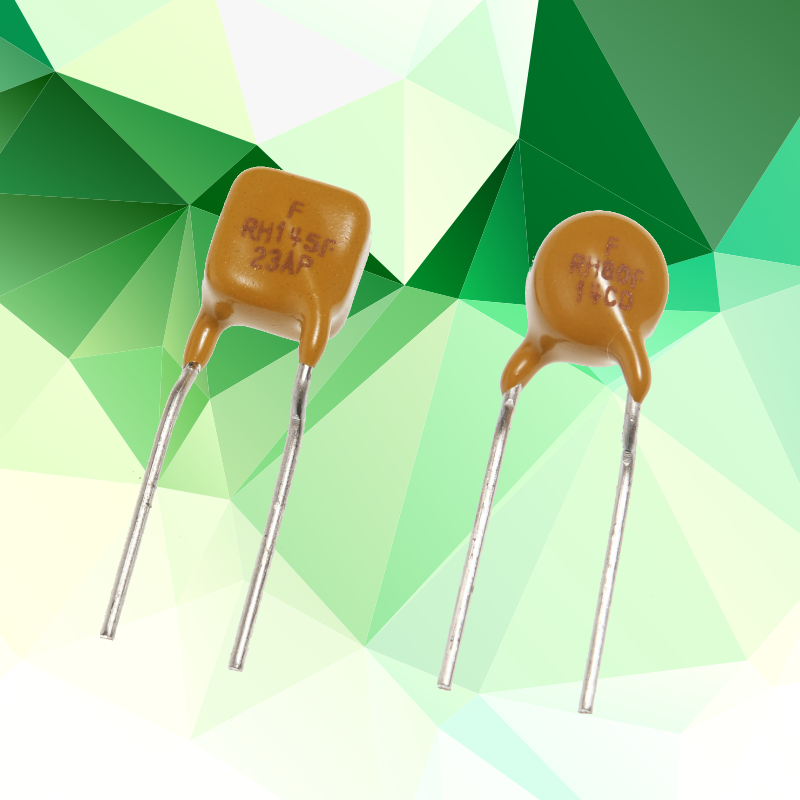

FRHV Series - Radial Leaded PPTC
Application
Telecommunication and Data transmitting
Feature
Low hold current, Solid state
Operation Current
0.08 A~0.40A
Maximum Operation Voltage
60V/100V/250VDC
Maximum Interrupt Voltage
250V/600VAC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50138901 |
Electrical Characteristics (23°C)
|
Part Number
|
Hold
Current |
Trip
Current |
Max
Current |
Max. Oper.
Voltage |
Max. Int.
Voltage |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
IMAX, A
|
V MAX, V AC/DC
|
VI-MAX, V AC/DC
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FRH080-250VF |
0.08
|
0.16
|
3.0
|
100
|
250
|
1.0
|
0.35
|
4.0
|
14.0
|
33.00
|
| FRH110-250VF |
0.11
|
0.22
|
3.0
|
100
|
250
|
1.0
|
1.00
|
2.0
|
5.00
|
16.00
|
| FRH120-250VF |
0.12
|
0.24
|
3.0
|
100
|
250
|
1.0
|
1.00
|
2.0
|
4.00
|
16.00
|
| FRH145-250VF |
0.15
|
0.29
|
3.0
|
100
|
250
|
1.0
|
1.00
|
2.5
|
3.00
|
12.00
|
| FRH180-250XF |
0.18
|
0.65
|
10.0
|
100
|
250
|
1.5
|
3.00
|
2.0
|
0.80
|
4.00
|
| FRH150-600MF |
0.15
|
0.30
|
3.0
|
250
|
600
|
1.0
|
1.00
|
4.0
|
6.00
|
17.00
|
| FRH160-600MF |
0.16
|
0.32
|
3.0
|
250
|
600
|
1.0
|
1.00
|
7.0
|
4.00
|
16.00
|
| FRH160-600VF |
0.16
|
0.32
|
3.0
|
250
|
600
|
1.0
|
1.00
|
7.0
|
4.00
|
18.00
|
| FRH200-600VF |
0.20
|
0.40
|
3.0
|
250
|
600
|
1.0
|
1.00
|
12.0
|
4.00
|
13.50
|
| FRH250-600VF |
0.25
|
0.86
|
3.0
|
250
|
600
|
1.0
|
3.00
|
1.0
|
1.00
|
7.00
|
| FRH400-600F |
0.40
|
1.00
|
3.0
|
60
|
600
|
1.0
|
3.00
|
4.0
|
0.95
|
1.90
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
158%
|
138%
|
119%
|
100%
|
92%
|
83%
|
73%
|
64%
|
54%
|
40%
|

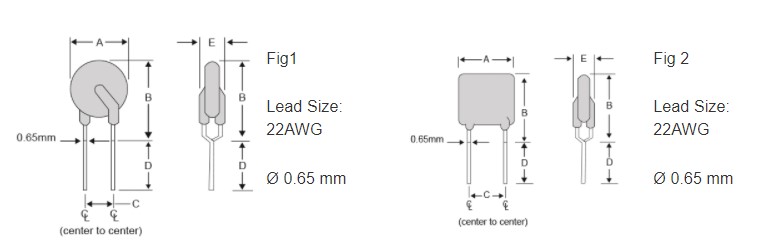

Product Dimension
|
Part Number
|
Fig.
|
A
|
B
|
C
|
D
|
E
|
|
Max
|
Max
|
Typ
|
Min
|
Max
|
||
| FRH080-250VF |
1
|
5.8
|
9.6
|
5.0
|
4.7
|
4.6
|
| FRH110-250VF |
1
|
6.8
|
9.9
|
5.0
|
4.7
|
4.6
|
| FRH120-250VF |
2
|
6.5
|
11.0
|
5.0
|
4.7
|
4.6
|
| FRH145-250VF |
2
|
6.5
|
11.0
|
5.0
|
4.7
|
4.6
|
| FRH180-250XF |
1
|
9.0
|
12.0
|
5.0
|
4.7
|
3.8
|
| FRH150-600MF |
2
|
9.0
|
12.5
|
5.0
|
4.7
|
4.6
|
| FRH160-600MF |
2
|
9.0
|
12.5
|
5.0
|
4.7
|
4.6
|
| FRH160-600VF |
2
|
16.0
|
12.6
|
5.0
|
4.7
|
6.0
|
| FRH200-600VF |
2
|
12.0
|
14.0
|
5.0
|
4.7
|
6.0
|
| FRH250-600VF |
2
|
12.0
|
15.0
|
5.0
|
4.7
|
6.0
|
| FRH400-600F |
2
|
15.0
|
14.5
|
5.0
|
4.7
|
6.0
|
