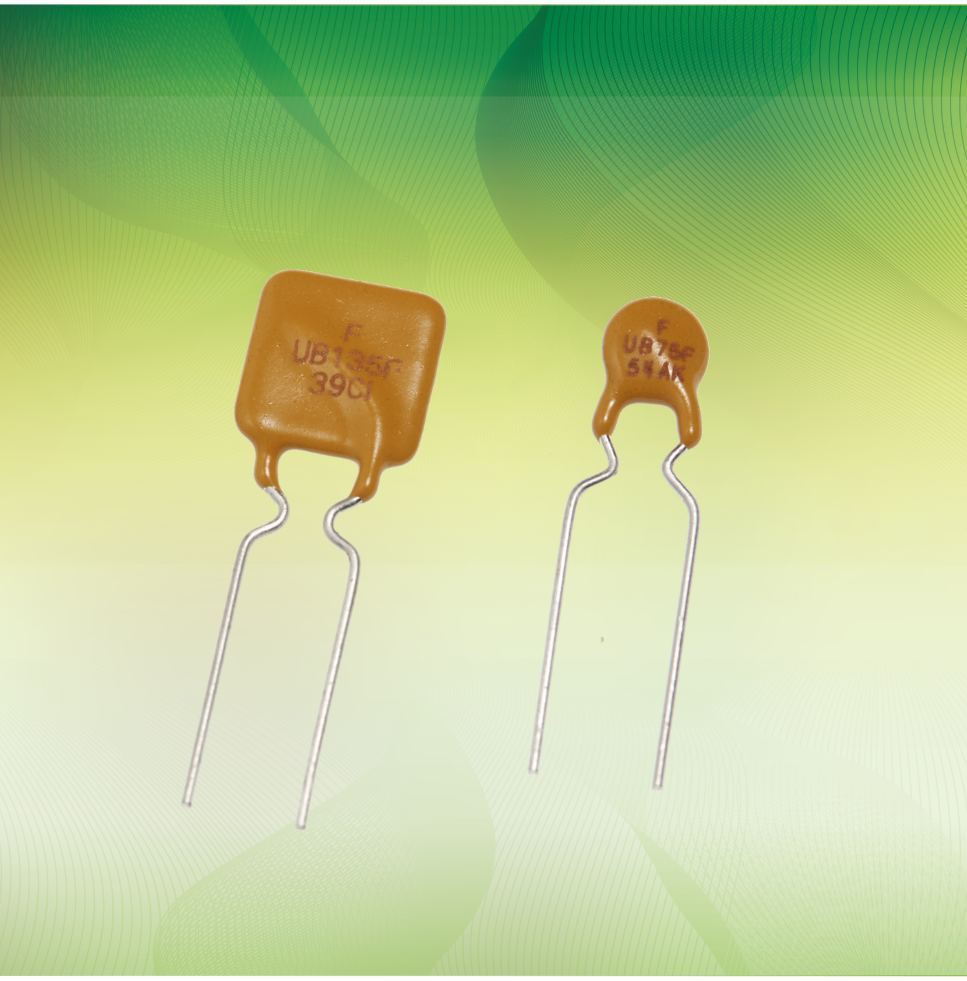

FUSB Series - Radial Leaded PPTC
Application
Low voltage USB equipment
Feature
Low resistance, Fast trip time, Lower Trip-to-hold Ratio
Operation Current
0.75A ~2.50A
Maximum Voltage
16V/30VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
| AGENCY | AGENCY FILE NUMBER |
 |
E211981 |
 |
E211981 |
 |
R50004084 |
Electrical Characteristics (23°C)
|
Part Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
|
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
| FUSB075F |
0.75
|
1.30
|
16
|
40
|
0.3
|
8.0
|
0.4
|
0.08
|
0.23
|
| FUSB090F |
0.90
|
1.80
|
16/30
|
40
|
0.6
|
8.0
|
1.2
|
0.07
|
0.18
|
| FUSB110F |
1.10
|
2.20
|
16/30
|
40
|
0.7
|
8.0
|
2.3
|
0.05
|
0.14
|
| FUSB120F |
1.20
|
2.00
|
16
|
40
|
0.6
|
8.0
|
0.7
|
0.04
|
0.14
|
| FUSB135F |
1.35
|
2.70
|
16/30
|
40
|
0.8
|
8.0
|
4.5
|
0.04
|
0.12
|
| FUSB155F |
1.55
|
2.70
|
16
|
40
|
0.7
|
7.8
|
2.2
|
0.03
|
0.12
|
| FUSB160F |
1.60
|
3.20
|
16/30
|
40
|
0.9
|
8.0
|
9.0
|
0.03
|
0.11
|
| FUSB185F |
1.85
|
3.70
|
16/30
|
40
|
1.0
|
8.0
|
10.0
|
0.03
|
0.09
|
| FUSB250F |
2.50
|
5.00
|
16/30
|
40
|
1.2
|
8.0
|
40.0
|
0.02
|
0.07
|
Thermal Derating
|
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
|
Derating %
|
145%
|
130%
|
115%
|
100%
|
91%
|
83%
|
78%
|
70%
|
61%
|
50%
|

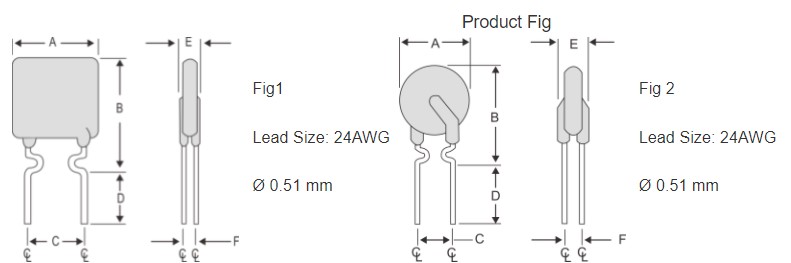

Product Dimension
|
Part Number
|
Fig.
|
A
|
B
|
C
|
D
|
E
|
F
|
|
Max
|
Max
|
Typ
|
Min
|
Max
|
Typ
|
||
| FUSB075F |
2
|
6.9
|
11.4
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB090F |
1
|
7.4
|
12.2
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB110F |
1
|
7.4
|
14.2
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB120F |
2
|
6.9
|
11.7
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB135F |
1
|
8.9
|
13.5
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB155F |
2
|
6.9
|
11.7
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB160F |
1
|
8.9
|
15.2
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB185F |
1
|
10.2
|
15.7
|
5.1
|
7.6
|
3.0
|
0.8
|
| FUSB250F |
1
|
11.4
|
18.3
|
5.1
|
7.6
|
3.0
|
0.8
|
