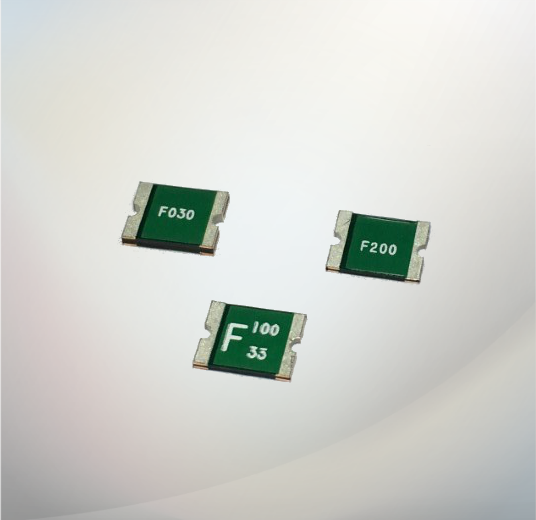

FSMD2016 Series

FRX Series - Radial Leaded PTC
Spec Download

Application

All high-density boards

Feature

Small surface mount, Solid state Faster time to trip than standard SMD devices Lower resistance than standard SMD devices

Operation Current

0.30A~2.00A

Maximum Voltage

6V~60VDC

Temperature Range

-40℃ to 85℃

Agency Recognition

AGENCY AGENCY FILE NUMBER
In Progress
In Progress
R50090556

Electrical Characteristics

Part
Number
Hold
Current
Trip
Current
Rated
Voltage
Max
Current
Typical
Power
Max Time to Trip
Resistance
IH, A
IT, A
VMAX, VDC
IMAX, A
Pd, W
Current
Time
Rmin
R1max
FSMD030-2016-R
0.30
0.60
60
100
1.4
1.5
3.0
0.500
2.300
FSMD050-2016R
0.50
1.10
60
100
1.4
2.5
5.0
0.450
1.000
FSMD075-2016R
0.75
1.50
60
100
1.4
8.0
0.5
0.130
0.900
FSMD100-2016R
1.10
2.20
15
100
1.4
8.0
0.5
0.700
0.400
FSMD100-33-2016-R
1.10
2.20
33
100
1.4
8.0
0.5
0.700
0.400
FSMD150-2016-R
1.50
3.00
15
100
1.4
8.0
0.8
0.050
0.180
FSMD200-2016-R
2.00
4.20
6
100
1.4
8.0
3.0
0.030
0.180



Thermal Derating

Thermal Derating
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
157%
133%
118%
100%
90%
80%
70%
60%
51%
36%

Product Dimension


Part Number
A
B
C
D
E
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
FSMD030-2016-R
4.72
5.44
3.70
4.43
0.40
1.15
0.30
1.50
0.25
0.65
FSMD050-2016R
4.72
5.44
3.70
4.43
0.40
1.70
0.30
1.50
0.25
0.65
FSMD075-2016R
4.72
5.44
3.70
4.43
0.40
1.70
0.30
1.50
0.25
0.65
FSMD100-2016-R
4.72
5.44
3.70
4.43
0.30
0.70
0.30
1.50
0.25
0.65
FSMD100-33-2016-R
4.72
5.44
3.70
4.43
0.30
070
0.30
1.50
0.25
0.65
FSMD150-2016-R
4.72
5.44
3.70
4.43
0.25
0.65
0.30
1.50
0.25
0.65
FSMD200-2016-R
4.72
5.44
3.70
4.43
0.25
0.65
0.30
1.50
0.25
0.65
