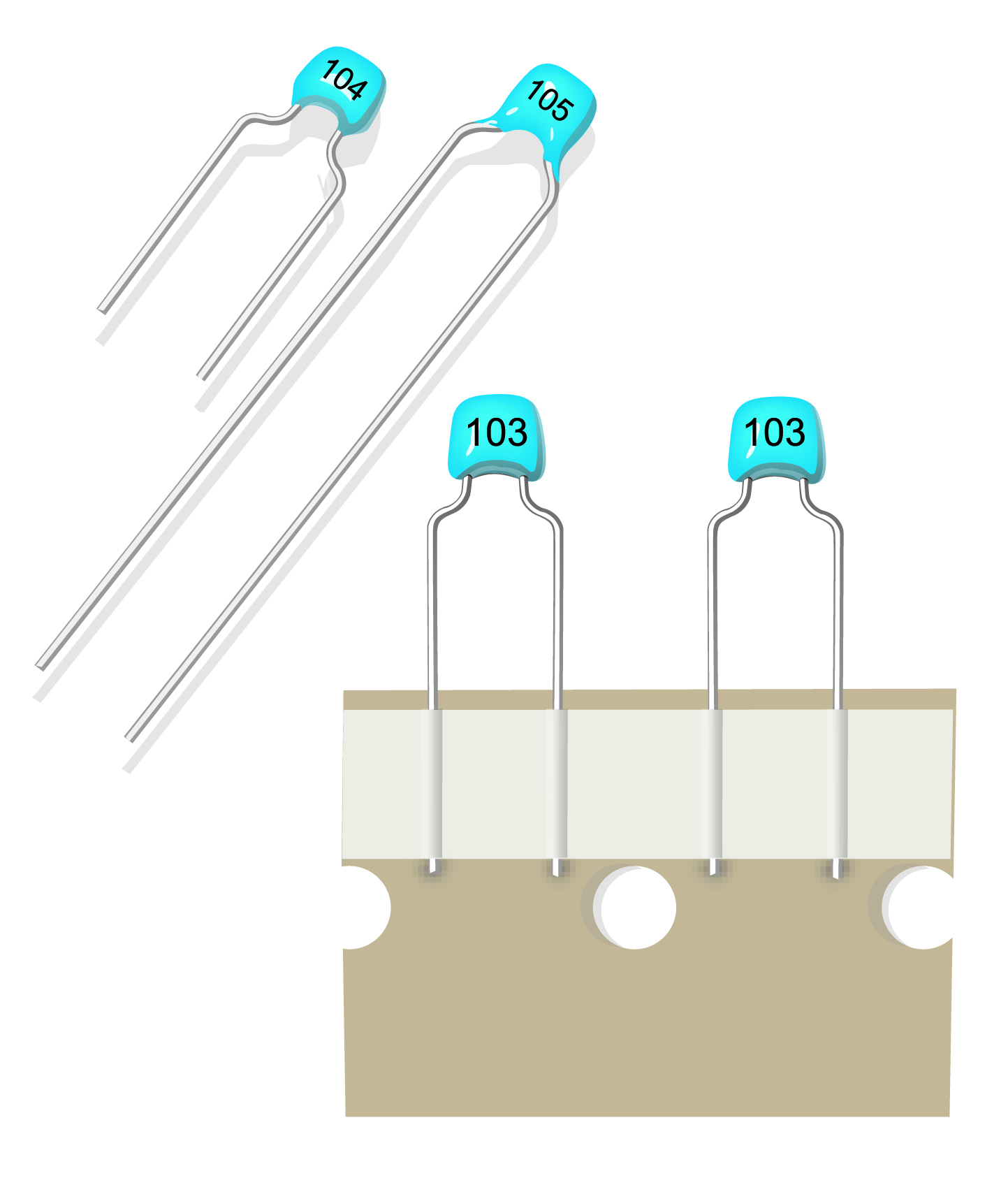

RD : Radial Leaded Multilayer Ceramic Capacitors

Types

RD2* : 4.0 x 4.0 x 2.5mm, RD3* : 5.0 x 5.0 x 3.0mm

Capacitance Range

C0G: 1pF~33,000pF, X7R: 0.00022uF~4.70uF, X5R: 0.10uF~22uF, Y5V: 0.1uF~100uF, Z5U: 0.1uF~2.20uF

Rated Voltage

RD2* : 6.3V ~ 250V, RD3* : 6.3V ~ 500V


Size Code & Capacitance Range
