S-Surge and ESD Protection

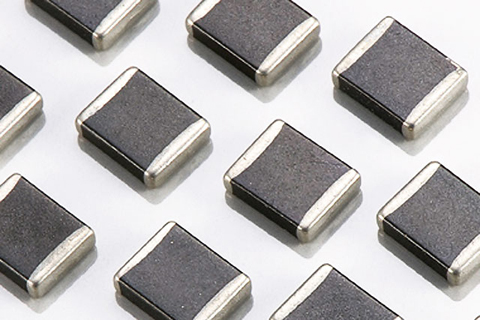

The JMV standard S series is a family of transient surge suppressor based on multilayer structure technology.
They can suppress a variety of transient events, including those specified by IEC or other protection norm used for Electromagnetic Compliance (EMC).
The JMV S series is typically applied to protect integrated circuits (IC) and other components at the circuit board.
ELECTRICAL CHARACTERISTICS
| Part Number |
Working Voltage (Vw) |
Breakdown Voltage (Vb) |
Clamping Voltage (Vc) |
Peak Current (Ip) |
Transient Energy (Et) |
Typical Capactance (C) |
|
| Volt | Volt | Volt | Amp | Joule | pF | ||
| <10μA | 1mA(DC) | 1A,8/20μs | 8/20μs | 10/1000μs | 1kHz | 1MHz | |
| 0402 | |||||||
| JMV0402S5R6T301 | 5.6 | 7.0~10.0 | 22.0 | 20 | 0.05 | - | 300 |
| JMV0402S090T201 | 9.0 | 10.0~15.0 | 32.0 | 20 | 0.05 | - | 200 |
| JMV0402S140T850 | 14.0 | 16.2~19.8 | 38.0 | 20 | 0.05 | - | 85 |
| JMV0402S180T550 | 18.0 | 21.6~26.0 | 45.0 | 20 | 0.05 | - | 55 |
| 0603 | |||||||
| JMV0603S5R6T102 | 5.6 | 7.0~10.0 | 22.0 | 30 | 0.1 | 1000 | - |
| JMV0603S5R6T351 | 5.6 | 7.0~10.0 | 22.0 | 30 | 0.1 | 350 | - |
| JMV0603S090T651 | 9.0 | 10.0~15.0 | 30.0 | 30 | 0.1 | 650 | - |
| JMV0603S090T331 | 9.0 | 10.0~15.0 | 30.0 | 30 | 0.1 | 330 | - |
| JMV0603S140T451 | 14.0 | 16.2~19.8 | 37.0 | 30 | 0.1 | 450 | - |
| JMV0603S140T181 | 14.0 | 16.2~19.8 | 37.0 | 30 | 0.1 | 180 | - |
| JMV0603S180T281 | 18.0 | 21.6~26.0 | 48.0 | 30 | 0.1 | 280 | - |
| JMV0603S180T111 | 18.0 | 21.6~26.0 | 48.0 | 30 | 0.1 | 110 | - |
| JMV0603S260T151 | 26.0 | 31.0~38.0 | 62.0 | 30 | 0.1 | 150 | - |
| JMV0603S260T800 | 26.0 | 31.0~38.0 | 62.0 | 30 | 0.1 | 80 | - |
| JMV0603S300T101 | 30.0 | 37.0~46.0 | 73.0 | 30 | 0.1 | 100 | - |
| 0805 | |||||||
| JMV0805S5R6T132 | 5.6 | 7.0~10.0 | 22.0 | 80 | 0.1 | 1300 | - |
| JMV0805S5R6T451 | 5.6 | 7.0~10.0 | 22.0 | 40 | 0.1 | 450 | - |
| JMV0805S5R6T661 | 5.6 | 7.0~10.0 | 22.0 | 40 | 0.1 | 660 | - |
| JMV0805S090T781 | 9.0 | 10.0~15.0 | 27.0 | 40 | 0.1 | 780 | - |
| JMV0805S090T271 | 9.0 | 10.0~15.0 | 27.0 | 40 | 0.1 | 270 | - |
| JMV0805S120T531 | 12.0 | 14.0~18.3 | 34.0 | 40 | 0.1 | 530 | - |
| JMV0805S120T431 | 12.0 | 14.0~18.3 | 34.0 | 40 | 0.1 | 430 | - |
| JMV0805S120T251 | 12.0 | 14.0~18.3 | 34.0 | 40 | 0.1 | 250 | - |
| JMV0805S140T381 | 14.0 | 16.2~19.8 | 37.0 | 40 | 0.1 | 380 | - |
| JMV0805S140T201 | 14.0 | 16.2~19.8 | 37.0 | 40 | 0.1 | 200 | - |
| JMV0805S180T351 | 18.0 | 21.6~26.0 | 48.0 | 40 | 0.1 | 350 | - |
| JMV0805S180T111 | 18.0 | 21.6~26.0 | 48.0 | 40 | 0.1 | 110 | - |
| JMV0805S260T161 | 26.0 | 31.0~38.0 | 62.0 | 40 | 0.1 | 160 | - |
| JMV0805S260T101 | 26.0 | 31.0~38.0 | 62.0 | 40 | 0.1 | 100 | - |
| JMV0805S300T101 | 30.0 | 37.0~46.0 | 73.0 | 40 | 0.1 | 100 | - |
| JMV0805S300T311 | 30.0 | 37.0~46.0 | 73.0 | 100 | 0.3 | 310 | - |
| Part Number | Working Voltage (Vw) | Breakdown Voltage (Vb) | Clamping Voltage (Vc) | Peak Current (Ip) | Transient Energy (Et) | Typical Capacitance (C) | |
| Volt | Volt | Volt | Amp | Joule | pF | ||
| <50μA | 1mA(DC) | 1A,8/20μs | 8/20μs | 10/1000μs | 1KHz | 1MHz | |
| 1206 | |||||||
| JMV1206S5R6T302 | 5.6 | 7.0 ~ 10.0 | 22.0 | 150 | 1.0 | 3000 | - |
| JMV1206S120T801 | 12.0 | 14.0~18.3 | 34.0 | 150 | 0.6 | 800 | - |
| JMV1206S140T401 | 14.0 | 16.2~19.8 | 37.0 | 100 | 0.3 | 400 | - |
| JMV1206S140T801 | 14.0 | 16.2~19.8 | 37.0 | 200 | 0.5 | 800 | - |
| JMV1206S160T132 | 16.0 | 19.8~24.2 | 40.0 | 200 | 1.0 | 1300 | - |
| JMV1206S180T132 | 18.0 | 21.6~26.0 | 48.0 | 200 | 1.0 | 1300 | - |
| JMV1206S180T901 | 18.0 | 21.6~26.0 | 48.0 | 100 | 0.3 | 900 | - |
| JMV1206S260T901 | 26.0 | 31.0~38.0 | 62.0 | 200 | 1.0 | 900 | - |
| JMV1206S300T201 | 30.0 | 37.0~46.0 | 73.0 | 100 | 0.3 | 200 | - |
| JMV1206S300T401 | 30.0 | 37.0~46.0 | 73.0 | 100 | 0.3 | 400 | - |
| JMV1206S300T551 | 30.0 | 37.0~46.0 | 73.0 | 200 | 1.0 | 550 | - |
| JMV1206S330T551 | 33.0 | 39.0~47.0 | 75.0 | 180 | 1.0 | 550 | - |
| JMV1206S380T551 | 38.0 | 42.3~51.7 | 88.0 | 200 | 1.1 | 500 | - |
| JMV1206S450T551 | 45.0 | 50.4~61.6 | 95.0 | 180 | 0.8 | 550 | - |
| JMV1206S480T251 | 48.0 | 55.8~68.2 | 100.0 | 100 | 0.8 | 250 | - |
| JMV1206S560T101 | 56.0 | 61.0~77.0 | 120.0 | 100 | 0.3 | 100 | - |
| JMV1206S560T381 | 56.0 | 61.0~77.0 | 120.0 | 180 | 1.0 | 380 | - |
| JMV1206S650T241 | 65.0 | 73.8~90.2 | 135.0 | 100 | 0.6 | 240 | - |
| 1210 | |||||||
| JMV1210S5R6T502 | 5.6 | 7.0 ~ 10.0 | 22@2.5A | 250 | 0.4 | 5000 | - |
| JMV1210S180T202 | 18.0 | 21.6~26.0 | 48@2.5A | 500 | 1.5 | 2000 | - |
| JMV1210S220T182 | 22.0 | 24.3 ~ 29.7 | 52@2.5A | 400 | 1.7 | 1800 | - |
| JMV1210S260T112 | 26.0 | 31.0~38.0 | 62@2.5A | 250 | 1.2 | 1100 | - |
| JMV1210S260T152 | 26.0 | 31.0~38.0 | 62@2.5A | 400 | 1.9 | 1500 | - |
| JMV1210S300T901 | 30.0 | 37.0~46.0 | 77@2.5A | 250 | 1.7 | 900 | - |
| JMV1210S300T122 | 30.0 | 37.0~46.0 | 77@2.5A | 400 | 1.9 | 1200 | - |
| JMV1210S450T951 | 45.0 | 50.4~61.6 | 95@2.5A | 250 | 2.2 | 950 | - |
| 1812 | |||||||
| JMV1812S180T562 | 18.0 | 21.6 ~ 26.0 | 48@5A | 800 | 2.4 | 5600 | - |
| JMV1812S220T352 | 22.0 | 24.3 ~ 29.7 | 52@5A | 500 | 2.0 | 3500 | - |
| JMV1812S220T402 | 22.0 | 24.3 ~ 29.7 | 52@5A | 800 | 2.7 | 4000 | - |
| JMV1812S260T282 | 26.0 | 31.0~38.0 | 62@5A | 500 | 2.5 | 2800 | - |
| JMV1812S260T302 | 26.0 | 31.0~38.0 | 62@5A | 800 | 3.0 | 3000 | - |
| JMV1812S300T252 | 30.0 | 37.0~46.0 | 77@5A | 800 | 3.7 | 2500 | - |
| JMV1812S380T202 | 38.0 | 42.3~51.7 | 88@5A | 800 | 4.2 | 2000 | - |
| 2220 | |||||||
| JMV2220S5R6T203 | 5.6 | 6.4~9.6 | 19@10A | 1200 | 1.4 | 20000 | - |
| JMV2220S180T153 | 18.0 | 21.6~26.0 | 56@10A | 1200 | 5.8 | 15000 | - |
| JMV2220S300T502 | 30.0 | 37.0~46.0 | 77@10A | 1200 | 9.6 | 5000 | - |
| JMV2220S380T402 | 38.0 | 42.3~51.7 | 88@10A | 1200 | 12 | 4000 | - |
