E-For ESD Protection

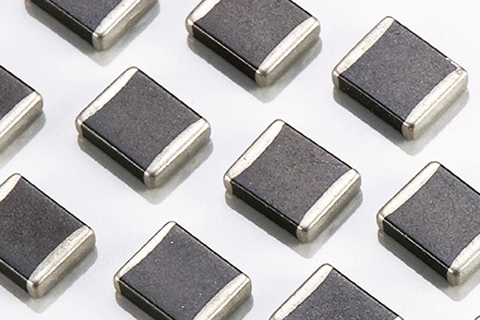

The JMV ultra low cap. E series is a family of transient surge suppressor are based on multilayer structure technology.
They can suppress variety of transient events, including those specified by IEC or other standard used for Electromagnetic Compliance (EMC).
The JMV ultra low cap. E series is typically applied to protect integrated circuits and I/O port high speed signal transient voltage or electrostatic discharge (ESD).
ELECTRICAL CHARACTERISTICS
| Part Number | Working Voltage (Vw) | Breakdown Voltage (Vb) | Clamping Voltage (Vc) | Peak Current (Ip) | Transient Energy (Et) | Typical Capactance (C) | ||
| Volt | Volt | Volt | Amp | Joule | pF | |||
| <50μA | 1mA(DC) | 1A,8/20μs | 8/20μs | 10/1000μs | 1kHz | 1MHz | ||
| JMV0402E200T220 | 12.0 | 15.0~25.0 | 50.0 | 1max. | 0.05max. | - | 22 | |
| JMV0402E270T150 | 17.0 | 21.6~32.4 | 66.0 | 1max. | 0.05max. | - | 15 | |
| JMV0402E270T300 | 17.0 | 21.6~32.4 | 66.0 | 1max. | 0.05max. | - | 30 | |
| JMV0402E520T030 | 17.0 | 41.6~56.0 | 130.0 | 1max. | 0.05max. | - | 3.0 | |
| JMV0603E270T150 | 17.0 | 21.6~32.4 | 66.0 | 2max. | 0.05max. | - | 15 | |
| JMV0603E270T300 | 17.0 | 21.6~32.4 | 66.0 | 2max. | 0.05max. | - | 30 | |
| JMV0603E520T030 | 17.0 | 41.6~56.0 | 130.0 | 2max. | 0.05max. | - | 3.0 | |
| JMV0603E620T150 | 17.0 | 55.8~68.2 | 120.0 | 2max. | 0.05max. | - | 15 | |
| JMV0603E620T300 | 17.0 | 55.8~68.2 | 120.0 | 2max. | 0.05max. | - | 30 | |
