7Φ

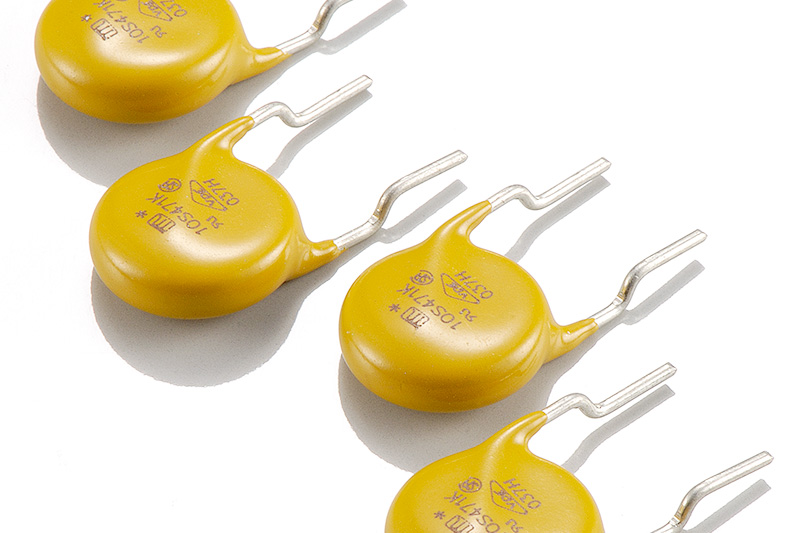

The Ultra high surge current JVR U series are specifically designed for Ultra high transient surge suppression. They are radial lead varistors (MOVs or VDRs) designed to be the continuously used across AC line primary or DC circuit.
For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
| Type No. | Maximum Continuous Operation Voltage (MCOV) |
Varistor Voltage (V) (@ 0.1mA) |
Maximum Clamping Voltage | Withstanding Surge Current (8/20us) | |||
| (V ac) | (V dc) | (V) | Tolerance | V@ ic (V) | ic (A) | 1 Time (A) | |
| JVR07U181K | 115 | 150 | 180 | ±10% | 300 | 10 | 1800 |
| JVR07U201K | 130 | 170 | 200 | ±10% | 340 | 10 | 1800 |
| JVR07U221K | 140 | 180 | 220 | ±10% | 360 | 10 | 1800 |
| JVR07U241K | 150 | 200 | 240 | ±10% | 395 | 10 | 1800 |
| JVR07U271K | 175 | 225 | 270 | ±10% | 455 | 10 | 1800 |
| JVR07U301K | 195 | 250 | 300 | ±10% | 505 | 10 | 1800 |
| JVR07U331K | 210 | 275 | 330 | ±10% | 550 | 10 | 1800 |
| JVR07U361K | 230 | 300 | 360 | ±10% | 595 | 10 | 1800 |
| JVR07U391K | 250 | 320 | 390 | ±10% | 650 | 10 | 1800 |
| JVR07U431K | 275 | 350 | 430 | ±10% | 710 | 10 | 1800 |
| JVR07U471K | 300 | 385 | 470 | ±10% | 775 | 10 | 1800 |
| JVR07U511K | 320 | 418 | 510 | ±10% | 842 | 10 | 1800 |
| JVR07U561K | 350 | 460 | 560 | ±10% | 920 | 10 | 1800 |
| JVR07U621K | 385 | 505 | 620 | ±10% | 1025 | 10 | 1800 |
| JVR07U681K | 420 | 560 | 680 | ±10% | 1120 | 10 | 1800 |
| JVR07U751K | 460 | 615 | 750 | ±10% | 1240 | 10 | 1800 |
| JVR07U781K | 485 | 640 | 780 | ±10% | 1290 | 10 | 1800 |
| JVR07U821K | 510 | 670 | 820 | ±10% | 1355 | 10 | 1800 |
