14Φ

FRX Series - Radial Leaded PTC

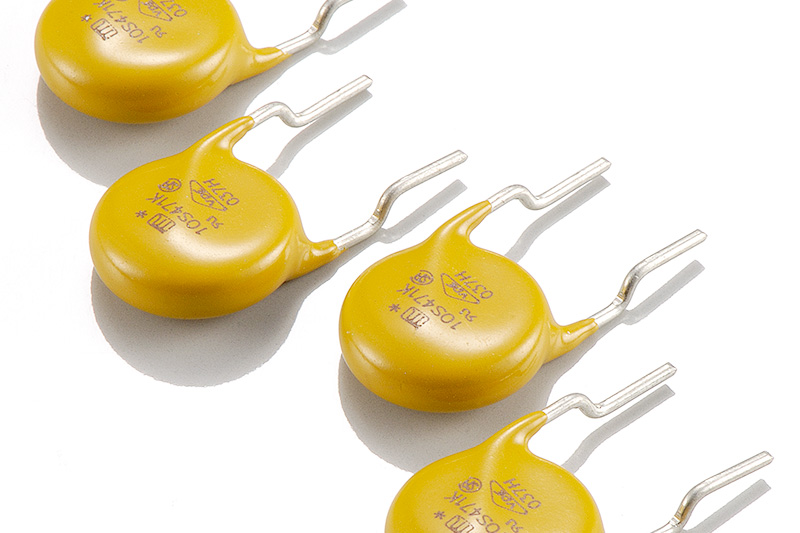

The Ultra high surge current JVR U series are specifically designed for Ultra high transient surge suppression. They are radial lead varistors (MOVs or VDRs) designed to be the continuously used across AC line primary or DC circuit. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum Continuous Operation Voltage (MCOV) Varistor Voltage (V)
(@ 0.1mA)		 Maximum Clamping Voltage Withstanding Surge Current (8/20us)
(V ac) (V dc) (V) Tolerance V@ ic (V) ic (A) 1 Time (A)
JVR14U181K 115 150 180 ±10% 300 50 8000
JVR14U201K 130 170 200 ±10% 340 50 8000
JVR14U221K 140 180 220 ±10% 360 50 8000
JVR14U241K 150 200 240 ±10% 395 50 8000
JVR14U271K 175 225 270 ±10% 455 50 8000
JVR14U301K 195 250 300 ±10% 505 50 8000
JVR14U331K 210 275 330 ±10% 550 50 8000
JVR14U361K 230 300 360 ±10% 595 50 8000
JVR14U391K 250 320 390 ±10% 650 50 8000
JVR14U431K 275 350 430 ±10% 710 50 8000
JVR14U471K 300 385 470 ±10% 775 50 8000
JVR14U511K 320 418 510 ±10% 842 50 8000
JVR14U561K 350 460 560 ±10% 920 50 8000
JVR14U621K 385 505 620 ±10% 1025 50 8000
JVR14U681K 420 560 680 ±10% 1120 50 8000
JVR14U751K 460 615 750 ±10% 1240 50 8000
JVR14U781K 485 640 780 ±10% 1290 50 8000
JVR14U821K 510 670 820 ±10% 1355 50 8000
JVR14U911K 550 745 910 ±10% 1500 50 8000
JVR14U102K 625 825 1000 ±10% 1650 50 8000
JVR14U112K 680 895 1100 ±10% 1815 50 8000
