20Φ

FRX Series - Radial Leaded PTC

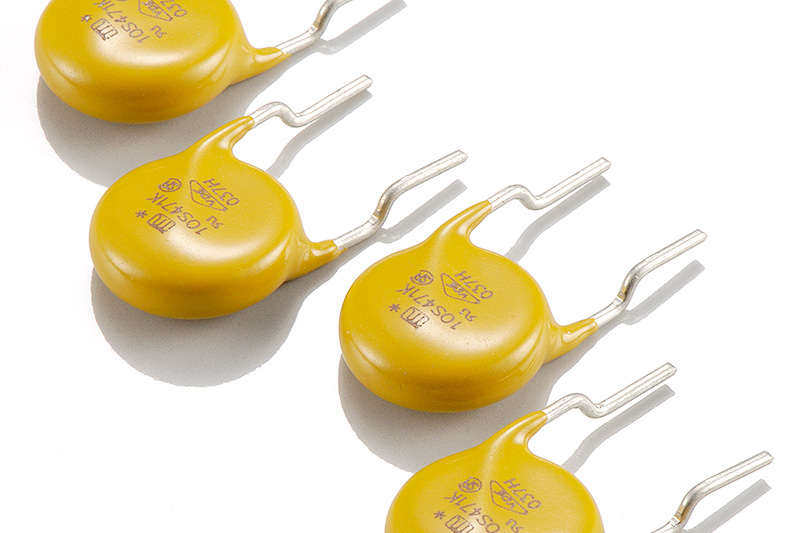

The normal type N series of Metal Oxide Varistor are radial lead varistors (MOVs or VDRs) that are designed to be used continuously across AC line primary or DC circuit for transient voltage and surge suppression. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum Continuous Operation Voltage (MCOV) Varistor Voltage (V)
(@ 0.1mA)		 Maximum Clamping Voltage Withstanding Surge Current (8/20us)
(V ac) (V dc) (V) Tolerance V@ ic (V) ic (A) 1 Time (A)
JVR20N220L 14 18 22 ±15% 43 20 2000
JVR20N270K 17 22 27 ±10% 53 20 2000
JVR20N330K 20 26 33 ±10% 65 20 2000
JVR20N390K 25 31 39 ±10% 77 20 2000
JVR20N470K 30 38 47 ±10% 93 20 2000
JVR20N560K 35 45 56 ±10% 110 20 2000
JVR20N680K 40 56 68 ±10% 135 20 2000
JVR20N820K 50 65 82 ±10% 135 100 6500
JVR20N101K 60 85 100 ±10% 165 100 6500
JVR20N121K 75 100 120 ±10% 200 100 6500
JVR20N151K 95 125 150 ±10% 250 100 6500
JVR20N181K 115 150 180 ±10% 300 100 6500
JVR20N201K 130 170 200 ±10% 340 100 6500
JVR20N221K 140 180 220 ±10% 360 100 6500
JVR20N241K 150 200 240 ±10% 395 100 6500
JVR20N271K 175 225 270 ±10% 455 100 6500
JVR20N301K 195 250 300 ±10% 505 100 6500
JVR20N331K 210 275 330 ±10% 550 100 6500
JVR20N361K 230 300 360 ±10% 595 100 6500
JVR20N391K 250 320 390 ±10% 650 100 6500
JVR20N431K 275 350 430 ±10% 710 100 6500
JVR20N471K 300 385 470 ±10% 775 100 6500
JVR20N511K 320 418 510 ±10% 842 100 6500
JVR20N561K 350 460 560 ±10% 920 100 6500
JVR20N621K 385 505 620 ±10% 1025 100 6500
JVR20N681K 420 560 680 ±10% 1120 100 6500
JVR20N751K 460 615 750 ±10% 1240 100 6500
JVR20N781K 485 640 780 ±10% 1290 100 6500
JVR20N821K 510 670 820 ±10% 1355 100 6500
JVR20N911K 550 745 910 ±10% 1500 100 6500
JVR20N102K 625 825 1000 ±10% 1650 100 6500
JVR20N112K 680 895 1100 ±10% 1815 100 6500
JVR20N122K 720 975 1200 ±10% 1980 100 6500
JVR20N142K 825 1135 1400 ±10% 2310 100 6500
JVR20N162K 920 1300 1600 ±10% 2640 100 6500
JVR20N182K 1000 1465 1800 ±10% 2970 100 6500
