5Φ

FRX Series - Radial Leaded PTC

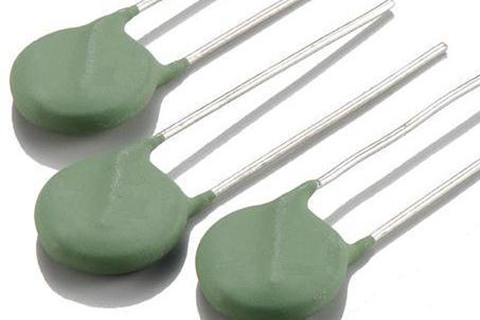

The normal type N series of Metal Oxide Varistor are radial lead varistors (MOVs or VDRs) that are designed to be used continuously across AC line primary or DC circuit for transient voltage and surge suppression. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum
Continuous
Operation
Voltage
(MCOV)		 Varistor
Voltage
(V)
(@0.1mA)		 Maximum Clamping Voltage Withstanding Surge Current(8/20us)
(V ac) (V dc) (V) Tolerance V@ ic    (V) ic (A) 1 Time   (A)
JVT05N180M 11 14 18 ±20% 40 1 100
JVT05N220L 14 18 22 ±15% 48 1 100
JVT05N270K 17 22 27 ±10% 60 1 100
JVT05N330K 20 26 33 ±10% 73 1 100
JVT05N390K 25 31 39 ±10% 86 1 100
JVT05N470K 30 38 47 ±10% 104 1 100
JVT05N560K 35 45 56 ±10% 123 1 100
JVT05N680K 40 56 68 ±10% 150 1 100
JVT05N820K 50 65 82 ±10% 145 5 400
JVT05N101K 60 85 100 ±10% 175 5 400
JVT05N121K 75 100 120 ±10% 210 5 400
JVT05N151K 95 125 150 ±10% 260 5 400
JVT05N181K 115 150 180 ±10% 320 5 400
JVT05N201K 130 170 200 ±10% 355 5 400
JVT05N221K 140 180 220 ±10% 380 5 400
JVT05N241K 150 200 240 ±10% 415 5 400
JVT05N271K 175 225 270 ±10% 475 5 400
JVT05N301K 195 250 300 ±10% 525 5 400
JVT05N331K 210 275 330 ±10% 575 5 400
JVT05N361K 230 300 360 ±10% 620 5 400
JVT05N391K 250 320 390 ±10% 675 5 400
JVT05N431K 275 350 430 ±10% 745 5 400
JVT05N471K 300 385 470 ±10% 810 5 400
JVT05N511K 320 418 510 ±10% 880 5 400
JVT05N561K 350 460 560 ±10% 940 5 400
JVT05N621K 385 505 620 ±10% 1050 5 400
JVT05N681K 420 560 680 ±10% 1150 5 400
JVT05N751K 460 615 750 ±10% 1290 5 400
