7Φ

FRX Series - Radial Leaded PTC

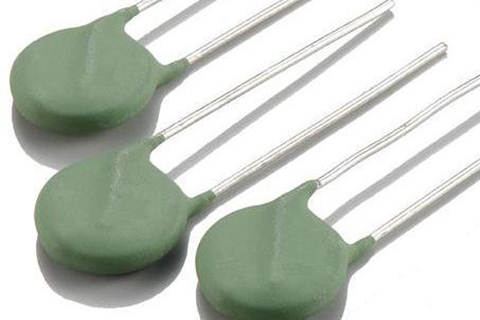

The normal type N series of Metal Oxide Varistor are radial lead varistors (MOVs or VDRs) that are designed to be used continuously across AC line primary or DC circuit for transient voltage and surge suppression. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum
Continuous
Operation
Voltage
(MCOV)		 Varistor
Voltage
(V)
(@1mA)		 Maximum Clamping Voltage Withstanding Surge Current(8/20us)
(V ac) (V dc) (V) Tolerance V@ ic    (V) ic (A) 1 Time   (A)
JVT07N180M 11 14 18 ±20% 36 2.5 250
JVT07N220L 14 18 22 ±15% 43 2.5 250
JVT07N270K 17 22 27 ±10% 53 2.5 250
JVT07N330K 20 26 33 ±10% 65 2.5 250
JVT07N390K 25 31 39 ±10% 77 2.5 250
JVT07N470K 30 38 47 ±10% 93 2.5 250
JVT07N560K 35 45 56 ±10% 110 2.5 250
JVT07N680K 40 56 68 ±10% 135 2.5 250
JVT07N820K 50 65 82 ±10% 135 10 1200
JVT07N101K 60 85 100 ±10% 165 10 1200
JVT07N121K 75 100 120 ±10% 200 10 1200
JVT07N151K 95 125 150 ±10% 250 10 1200
JVT07N181K 115 150 180 ±10% 300 10 1200
JVT07N201K 130 170 200 ±10% 340 10 1200
JVT07N221K 140 180 220 ±10% 360 10 1200
JVT07N241K 150 200 240 ±10% 395 10 1200
JVT07N271K 175 225 270 ±10% 455 10 1200
JVT07N301K 195 250 300 ±10% 505 10 1200
JVT07N331K 210 275 330 ±10% 550 10 1200
JVT07N361K 230 300 360 ±10% 595 10 1200
JVT07N391K 250 320 390 ±10% 650 10 1200
JVT07N431K 275 350 430 ±10% 710 10 1200
JVT07N471K 300 385 470 ±10% 775 10 1200
JVT07N511K 320 418 510 ±10% 842 10 1200
JVT07N561K 350 460 560 ±10% 920 10 1200
JVT07N621K 385 505 620 ±10% 1025 10 1200
JVT07N681K 420 560 680 ±10% 1120 10 1200
JVT07N751K 460 615 750 ±10% 1240 10 1200
JVT07N781K 485 640 780 ±10% 1290 10 1200
JVT07N821K 510 670 820 ±10% 1355 10 1200
