14Φ

FRX Series - Radial Leaded PTC

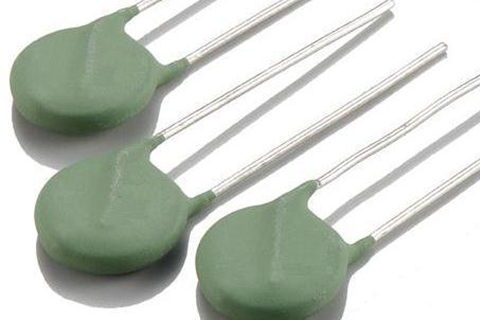

The normal type N series of Metal Oxide Varistor are radial lead varistors (MOVs or VDRs) that are designed to be used continuously across AC line primary or DC circuit for transient voltage and surge suppression. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum
Continuous
Operation
Voltage
(MCOV)		 Varistor
Voltage
(V)
(@1mA)		 Maximum Clamping Voltage Withstanding Surge Current(8/20us)
(V ac) (V dc) (V) Tolerance V@ ic    (V) ic (A) 1 Time   (A)
JVT14N180M 11 14 18 ±20% 36 10 1000
JVT14N220L 14 18 22 ±15% 43 10 1000
JVT14N270K 17 22 27 ±10% 53 10 1000
JVT14N330K 20 26 33 ±10% 65 10 1000
JVT14N390K 25 31 39 ±10% 77 10 1000
JVT14N470K 30 38 47 ±10% 93 10 1000
JVT14N560K 35 45 56 ±10% 110 10 1000
JVT14N680K 40 56 68 ±10% 135 10 1000
JVT14N820K 50 65 82 ±10% 135 50 4500
JVT14N101K 60 85 100 ±10% 165 50 4500
JVT14N121K 75 100 120 ±10% 200 50 4500
JVT14N151K 95 125 150 ±10% 250 50 4500
JVT14N181K 115 150 180 ±10% 300 50 4500
JVT14N201K 130 170 200 ±10% 340 50 4500
JVT14N221K 140 180 220 ±10% 360 50 4500
JVT14N241K 150 200 240 ±10% 395 50 4500
JVT14N271K 175 225 270 ±10% 455 50 4500
JVT14N301K 195 250 300 ±10% 505 50 4500
JVT14N331K 210 275 330 ±10% 550 50 4500
JVT14N361K 230 300 360 ±10% 595 50 4500
JVT14N391K 250 320 390 ±10% 650 50 4500
JVT14N431K 275 350 430 ±10% 710 50 4500
JVT14N471K 300 385 470 ±10% 775 50 4500
JVT14N511K 320 418 510 ±10% 842 50 4500
JVT14N561K 350 460 560 ±10% 920 50 4500
JVT14N621K 385 505 620 ±10% 1025 50 4500
JVT14N681K 420 560 680 ±10% 1120 50 4500
JVT14N751K 460 615 750 ±10% 1240 50 4500
JVT14N781K 485 640 780 ±10% 1290 50 4500
JVT14N821K 510 670 820 ±10% 1355 50 4500
JVT14N911K 550 745 910 ±10% 1500 50 4500
JVT14N102K 625 825 1000 ±10% 1650 50 4500
JVT14N112K 680 895 1100 ±10% 1815 50 4500
JVT14N122K 720 975 1200 ±10% 1980 50 4500
JVT14N142K 825 1135 1400 ±10% 2310 50 4500
JVT14N162K 920 1300 1600 ±10% 2640 50 4500
JVT14N182K 1000 1465 1800 ±10% 2970 50 4500
