25Φ

FRX Series - Radial Leaded PTC

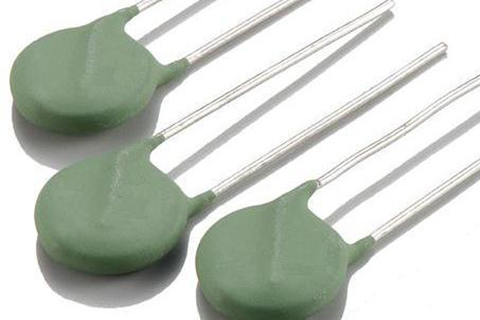

The normal type N series of Metal Oxide Varistor are radial lead varistors (MOVs or VDRs) that are designed to be used continuously across AC line primary or DC circuit for transient voltage and surge suppression. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Oridring Code Varistor Voltage
at 1mA		 Maximum Allowable Voltage Maximum Clamping Voltage Withstanding Surge Current (8/20us) Nominal
Discharge
Current (8/20us)		 Rated Wattage Energy (10/1000us)
DC (V) Tolerance AC rms (V) DC (V) V@ ic (V) ic (A) 1 Time
(A)		 In
(KA)		 (W) (J)
JVT25N201K11□△△ 200 ±10% 130 170 355 150 20000 5 1.2 190
JVT25N221K11□△△ 220 140 180 380 205
JVT25N241K11□△△ 240 150 200 415 225
JVT25N271K11□△△ 270 175 225 445 255
JVT25N301K11□△△ 300 195 250 495 280
JVT25N331K11□△△ 330 210 275 545 305
JVT25N361K11□△△ 360 230 300 595 330
JVT25N391K11□△△ 390 250 320 645 360
JVT25N431K11□△△ 430 275 350 710 380
JVT25N471K11□△△ 470 300 385 775 400
JVT25N511K11□△△ 510 320 418 840 420
JVT25N561K11□△△ 560 350 460 925 440
JVT25N621K11□△△ 620 385 505 1025 460
JVT25N681K11□△△ 680 420 560 1125 480
JVT25N751K11□△△ 750 460 615 1240 520
JVT25N781K11□△△ 780 485 640 1290 540
JVT25N821K11□△△ 820 510 670 1360 570
JVT25N911K11□△△ 910 550 745 1500 620
