10Φ

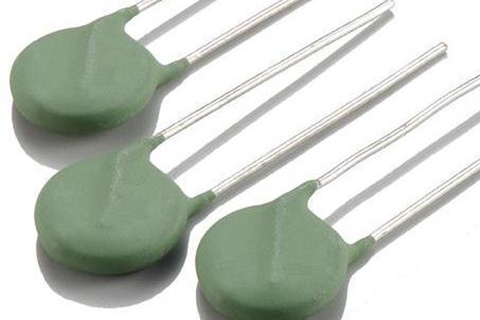

The high surge current JVT S series are specific designed for high transient surge suppression. They are radial lead varistors (MOVs or VDRs) used continuously across AC line primary or DC circuit.
For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
| Type No. |
Maximum Continuous Operation Voltage (MCOV) |
Varistor Voltage (V) (@1mA) |
Maximum Clamping Voltage | Withstanding Surge Current(8/20us) | |||
| (V ac) | (V dc) | (V) | Tolerance | V@ ic (V) | ic (A) | 1 Time (A) | |
| JVT10S180M | 11 | 14 | 18 | ±20% | 36 | 5 | 1000 |
| JVT10S220L | 14 | 18 | 22 | ±15% | 43 | 5 | 1000 |
| JVT10S270K | 17 | 22 | 27 | ±10% | 53 | 5 | 1000 |
| JVT10S330K | 20 | 26 | 33 | ±10% | 65 | 5 | 1000 |
| JVT10S390K | 25 | 31 | 39 | ±10% | 77 | 5 | 1000 |
| JVT10S470K | 30 | 38 | 47 | ±10% | 93 | 5 | 1000 |
| JVT10S560K | 35 | 45 | 56 | ±10% | 110 | 5 | 1000 |
| JVT10S680K | 40 | 56 | 68 | ±10% | 135 | 5 | 1000 |
| JVT10S820K | 50 | 65 | 82 | ±10% | 135 | 25 | 3500 |
| JVT10S101K | 60 | 85 | 100 | ±10% | 165 | 25 | 3500 |
| JVT10S121K | 75 | 100 | 120 | ±10% | 200 | 25 | 3500 |
| JVT10S151K | 95 | 125 | 150 | ±10% | 250 | 25 | 3500 |
| JVT10S181K | 115 | 150 | 180 | ±10% | 300 | 25 | 3500 |
| JVT10S201K | 130 | 170 | 200 | ±10% | 340 | 25 | 3500 |
| JVT10S221K | 140 | 180 | 220 | ±10% | 360 | 25 | 3500 |
| JVT10S241K | 150 | 200 | 240 | ±10% | 395 | 25 | 3500 |
| JVT10S271K | 175 | 225 | 270 | ±10% | 455 | 25 | 3500 |
| JVT10S301K | 195 | 250 | 300 | ±10% | 505 | 25 | 3500 |
| JVT10S331K | 210 | 275 | 330 | ±10% | 550 | 25 | 3500 |
| JVT10S361K | 230 | 300 | 360 | ±10% | 595 | 25 | 3500 |
| JVT10S391K | 250 | 320 | 390 | ±10% | 650 | 25 | 3500 |
| JVT10S431K | 275 | 350 | 430 | ±10% | 710 | 25 | 3500 |
| JVT10S471K | 300 | 385 | 470 | ±10% | 775 | 25 | 3500 |
| JVT10S511K | 320 | 418 | 510 | ±10% | 842 | 25 | 3500 |
| JVT10S561K | 350 | 460 | 560 | ±10% | 920 | 25 | 3500 |
| JVT10S621K | 385 | 505 | 620 | ±10% | 1025 | 25 | 3500 |
| JVT10S681K | 420 | 560 | 680 | ±10% | 1120 | 25 | 3500 |
| JVT10S751K | 460 | 615 | 750 | ±10% | 1240 | 25 | 3500 |
| JVT10S781K | 485 | 640 | 780 | ±10% | 1290 | 25 | 3500 |
| JVT10S821K | 510 | 670 | 820 | ±10% | 1355 | 25 | 3500 |
| JVT10S911K | 550 | 745 | 910 | ±10% | 1500 | 25 | 3500 |
| JVT10S102K | 625 | 825 | 1000 | ±10% | 1650 | 25 | 3500 |
| JVT10S112K | 680 | 895 | 1100 | ±10% | 1815 | 25 | 3500 |
| JVT10S122K | 720 | 975 | 1200 | ±10% | 1980 | 25 | 3500 |
| JVT10S142K | 825 | 1135 | 1400 | ±10% | 2310 | 25 | 3500 |
| JVT10S162K | 920 | 1300 | 1600 | ±10% | 2640 | 25 | 3500 |
| JVT10S182K | 1000 | 1465 | 1800 | ±10% | 2970 | 25 | 3500 |
