14Φ

FRX Series - Radial Leaded PTC

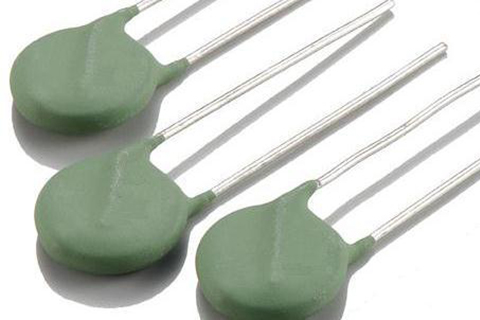

The high surge current JVT S series are specific designed for high transient surge suppression. They are radial lead varistors (MOVs or VDRs) used continuously across AC line primary or DC circuit. For safety reason, UL , CSA , VDE , CQC certificate are a must before applied to end products.
Spec Download Application Examples
Type No. Maximum
Continuous
Operation
Voltage
(MCOV)		 Varistor
Voltage
(V)
(@1mA)		 Maximum Clamping Voltage Withstanding Surge Current(8/20us)
(V ac) (V dc) (V) Tolerance V@ ic    (V) ic (A) 1 Time          (A)
JVT14S180M 11 14 18 ±20% 36 10 2000
JVT14S220L 14 18 22 ±15% 43 10 2000
JVT14S270K 17 22 27 ±10% 53 10 2000
JVT14S330K 20 26 33 ±10% 65 10 2000
JVT14S390K 25 31 39 ±10% 77 10 2000
JVT14S470K 30 38 47 ±10% 93 10 2000
JVT14S560K 35 45 56 ±10% 110 10 2000
JVT14S680K 40 56 68 ±10% 135 10 2000
JVT14S820K 50 65 82 ±10% 135 50 6000
JVT14S101K 60 85 100 ±10% 165 50 6000
JVT14S121K 75 100 120 ±10% 200 50 6000
JVT14S151K 95 125 150 ±10% 250 50 6000
JVT14S181K 115 150 180 ±10% 300 50 6000
JVT14S201K 130 170 200 ±10% 340 50 6000
JVT14S221K 140 180 220 ±10% 360 50 6000
JVT14S241K 150 200 240 ±10% 395 50 6000
JVT14S271K 175 225 270 ±10% 455 50 6000
JVT14S301K 195 250 300 ±10% 505 50 6000
JVT14S331K 210 275 330 ±10% 550 50 6000
JVT14S361K 230 300 360 ±10% 595 50 6000
JVT14S391K 250 320 390 ±10% 650 50 6000
JVT14S431K 275 350 430 ±10% 710 50 6000
JVT14S471K 300 385 470 ±10% 775 50 6000
JVT14S511K 320 418 510 ±10% 842 50 6000
JVT14S561K 350 460 560 ±10% 920 50 6000
JVT14S621K 385 505 620 ±10% 1025 50 6000
JVT14S681K 420 560 680 ±10% 1120 50 6000
JVT14S751K 460 615 750 ±10% 1240 50 6000
JVT14S781K 485 640 780 ±10% 1290 50 6000
JVT14S821K 510 670 820 ±10% 1355 50 6000
JVT14S911K 550 745 910 ±10% 1500 50 6000
JVT14S102K 625 825 1000 ±10% 1650 50 6000
JVT14S112K 680 895 1100 ±10% 1815 50 6000
JVT14S122K 720 975 1200 ±10% 1980 50 6000
JVT14S142K 825 1135 1400 ±10% 2310 50 6000
JVT14S162K 920 1300 1600 ±10% 2640 50 6000
JVT14S182K 1000 1465 1800 ±10% 2970 50 6000
