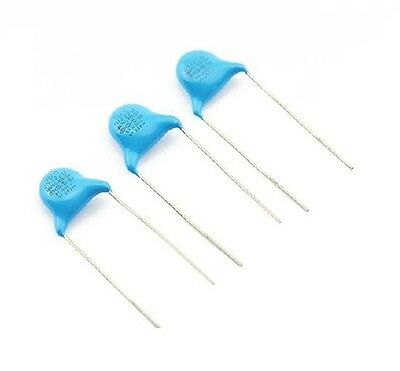

Class 5 - AC, X1Y1, X1Y2

WD (X1 Y1) KL (X1 Y2)
WD: X1=660/400Vac, Y1=500/250Vac
KL: X1=440/400Vac, Y2=300/250Vac

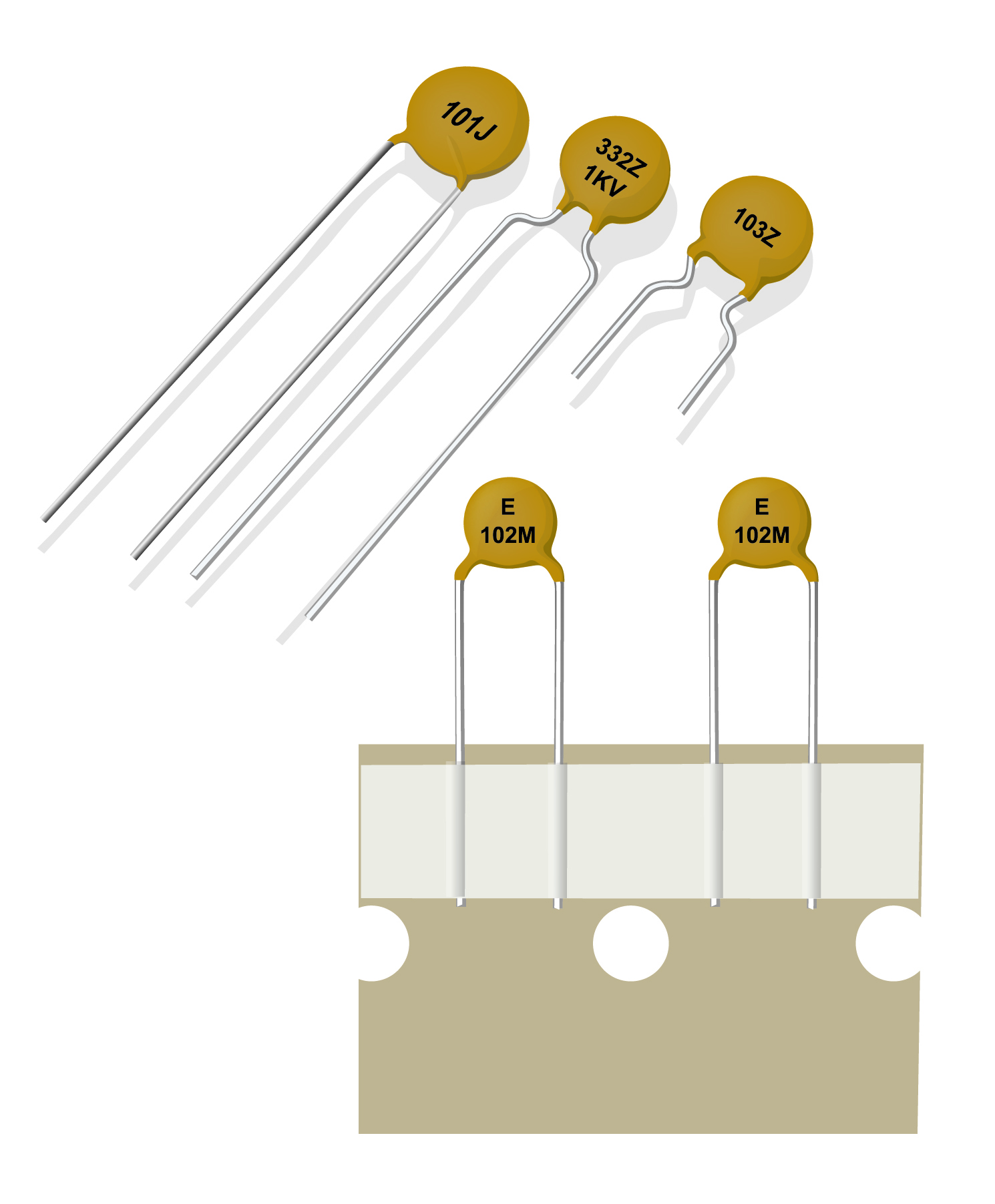

Class 1 - Temperature Compensating

Termperature Characteristics : C0G & S2L
Capacitance Range : 0.5pF ~ 1200pF
Voltage : 50V ~ 6,000V


Class 2 - High K

Termperature Characteristics : Z5U, Z5V, Y5E, Y5P & Y5U
Capacitance Range : 80pF ~ 100,000pF(0.1uF)
Voltage : 50V ~ 10,000V
