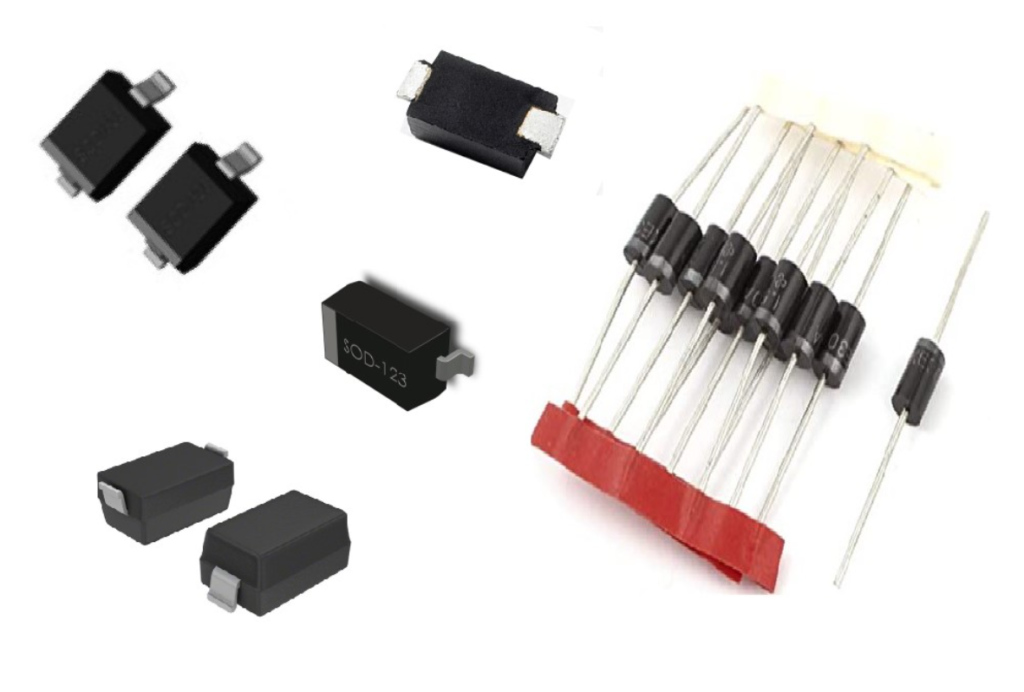

A transient voltage suppression (TVS) diode is a semiconductor device used to protect electronic circuits from overvoltage spikes and electrostatic discharge (ESD). It acts as a voltage clamp, quickly shunting large amounts of current to ground when a voltage spike occurs, keeping the voltage at a safe level for sensitive components. TVS diodes are available in both unidirectional (for single-direction protection) and bidirectional (for AC or bidirectional signals) configurations.
Characteristics
- Fast response time: TVS diodes react to voltage spikes much faster than other components like fuses or surge protectors.
- Low clamping voltage: They clamp the voltage at a level very close to the normal operating voltage, providing more precise protection.
- Low capacitance: This is important for protecting high-speed data lines without distorting the signal.
- High peak pulse current: They can absorb large amounts of energy for a short duration.
Applications
- Data line protection: Protecting sensitive inputs on devices from ESD.
- Home electronics: Safeguarding against surges from power lines.
- Automotive electronics: Protecting components in vehicles from voltage spikes caused by events like inductive load switching.
- Industrial power distribution: Mitigating disturbances in electrical systems.
1.5KE___, 1.5KE___A, 1.5KE___C, 1.5KE___CA Series
1.5SMC6.8 through 1.5SMC440, A, C, CA Series
5.0SMDJ___A, 5.0SMDJ___CA Series
P4KE__, P4KE___A, P4KE___C, P4KE___CA Series
P4SMA___A, P4SMA___CA Series
P6KE___A, P6KE___C, P6KE___CA Series
P6SMB___, P6SMB___A, P6SMB___CA Series
SA___, SA___A, SA___C, SA___CA Series
SMAJ___, SMAJ___A, SMAJ___C, SMAJ___CA Series
SMBJ___, SMBJ___A, SMBJ___C, SMBJ___CA Series
SMCJ___, SMCJ___A, SMCJ___C, SMCJ___CA Series
SMDJ___, SMDJ___A, SMDJ___C, SMDJ___CA Series
SMF___A, SMF___CA Series
SM4F___A, SM4F___CA Series
